Description
Description: WM TILT 45IN TO 85IN FLAT DISP TV LCD

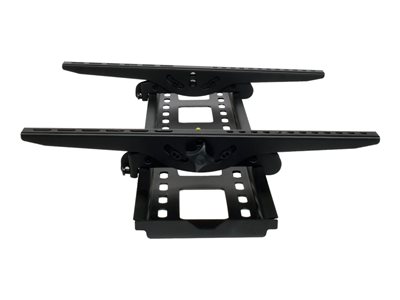

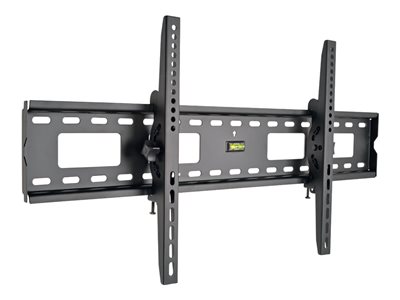

Tripp Lite Display TV LCD Wall Monitor Mount Tilt 45″ to 85″ TVs / EA / Flat-Screens – Bracket – for flat panel (Low Profile Mount) – steel – black – screen size: 45″-85″ – wall-mountable
The VESA-compliant DWT4585X tilt wall mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 91 kg (200 lbs.). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
Whats in the Box
- DWT4585X Tilt Wall Mount for 45″ to 85″ TVs and Monitors
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 20 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- (6) Anchor bolts
- (6) Concrete anchors
- (6) D6 washers
- Owner’s manual
Key Selling Points
Fits most flat-panel televisions, monitors and other displays from 45 to 85 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included
-10° to +10° tilt capability provides comfortable viewing from multiple angles
Improves viewing angles in applications where audience is below the display
Supports up to 200 lb.
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm
