Description
Description: CEIL MOUNT ARM SWIVEL 13IN 37IN DISP LCD

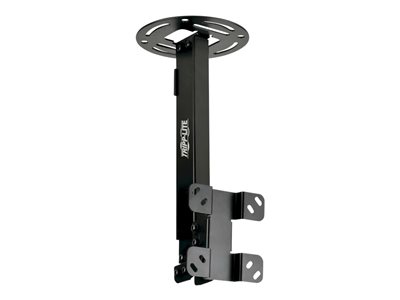

Tripp Lite Display TV Ceiling Monitor Mount Arm Swivel Tilt – Bracket – for LCD display (full-motion) – steel – black – screen size: 23″-42″ – ceiling mountable
The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 23 to 42 inches.
The DCTM adjusts with one easy touch to customize your viewing at any time. A 90° swivel and -20° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
The durable all-metal pole extends from 24 to 34 inches and supports up to 66 pounds. The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 100 x 200 mm and 200 x 200 mm.

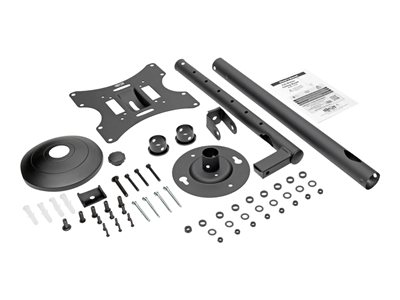

Whats in the Box
- Bracket on mounting pole
- Mounting plate
- (4) M4 x 12 mm screws
- (4) M4 x 20 mm screws
- (4) Screws
- (4) Anchors
- (4) 27 mm x 7.6 mm washers
- (4) M6 x 12 mm screws
- (4) M6 x 20 mm screws
- (4) M5 x 12 mm screws
- (4) M5 nuts
- (4) 16 mm x 5.3 mm washers
- (4) Big spacers
- (4) M6 lock washers
- (4) M4 lock washers
- Hex key
- Owner’s manual
Key Selling Points
Suspends flat-panel TV, monitor or other display from ceiling
Fits most flat-panel devices from 23 to 42 in.
Installation hardware included
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
90° swivel and -20° tilt capability provides comfortable viewing from multiple angles
Supports up to 66 lb.
Pole extends from 24 to 34 in.
Scratch-resistant powder-coated finish blends with any décor
Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 100 x 200 mm and 200 x 200 mm
