Description
Description: 8PT GETH SWCH RM UNMGD W/ POE METAL 1U

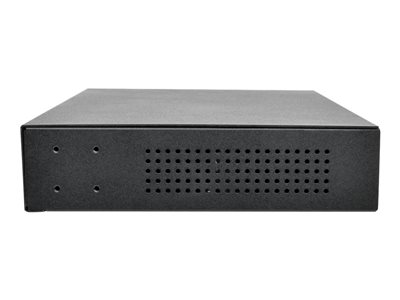

Tripp Lite 8Port Gigabit Ethernet Switch Rackmount Unmanaged w/PoE Metal 1U – Switch – unmanaged – 8 x 10/100/1000 (PoE+) – desktop, rack-mountable – PoE+ (140 W) – AC 100 – 240 V
The NG8POE 8-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 140W (up to 70W per port bank). Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.
This unmanaged switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It’s plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.
The NG8POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

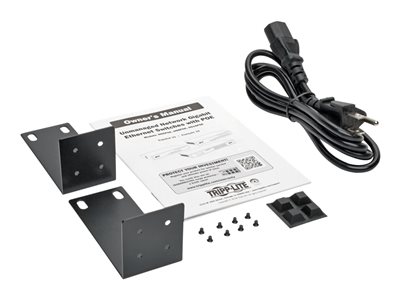

Whats in the Box
- Tripp Lite 8Port Gigabit Ethernet Switch Rackmount Unmanaged w/PoE Metal 1U
- Rubber feet
- Rack mounting kit
Key Selling Points
8 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
Auto-negotiable 10/100/1000 Mbps
Automatic MDI/MDIX cross-over detection
16 Gbps switching capacity (2 Gbps per port with full duplex)
LEDs indicate power, connection, activity and PoE status per port
Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
Up to 30W PoE per port
Dual port banks support up to 70W PoE each
Each port supplies PoE+ power to connected devices via network cable
Automatically shifts unused ports to low-power state without interrupting network connection
Also meets IEEE 802.3ab, 802.3i, 802.3u and 802.3 standards
No-fan design for silent operation

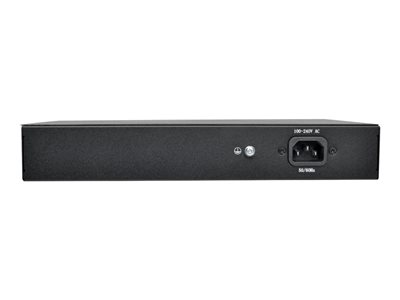

Detachable 5 ft. AC power cord with NEMA 5-15P plug
Plug-and-play with no configuration required
Includes rubber feet for secure placement on flat desktop surface

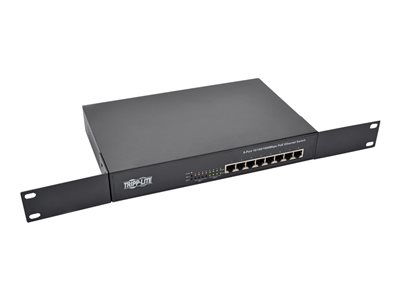

Mounts in 1U of EIA-standard 19 in. rack with included brackets
Grounding lug included
