Description
Description: 8PT KVM SWCH RACK USB PS/2 1U RM W/ OSD

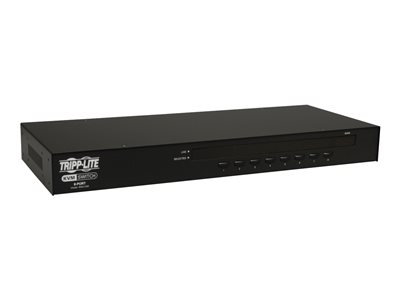

Tripp Lite 8-Port Rackmount USB / PS2 KVM Switch w/ On-Screen Display 1U – KVM switch – 8 x KVM port(s) – 1 local user – rack-mountable
Tripp Lite’s NetController 8-port, 1U rackmount KVM switch is an affordable, highly-flexible enterprise class KVM switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 8 directly connected computers, or expand the number of connected computers to up to 248 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19″ rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
Whats in the Box
- Tripp Lite 8-Port Rackmount USB / PS2 KVM Switch w/ On-Screen Display 1U
- External power adapter
- Keyboard / mouse / video cable – 20.3 cm
- Rack mounting kit
Key Selling Points
NetController 8-Port, 1U rackmount KVM switch
Control 8 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
Control up to 248 computers by daisychaining up to 15 additional B042-Series KVM switches
Allows for easy customization of ports by daisy-chaing any combination of B042-Series KVM’s (4-, 8- or 16-port)
Standard 19″ Rackmount size – hardware included
On-Screen Display (OSD) menu for intuitive operation and easy control
Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands
Supports video resolution up to 2048 x 1536
Password protection and auto-logout features
Firmware upgradeable
Robust metal case design ensures best EMI/RFI shielding and video quality
Hot-swappable: disconnect and reconnect USB computers without rebooting
Supports standard 5-button Microsoft, Logitech, or comparable mice
Supports standard Microsoft, Logitech, or comparable keyboards
Compatible with all major operating systems
Constructed of heavy-duty steel housing
1 year limited warranty
