Description
Description: 8PT RM KVM SWCH ON SCREEN DISP STEEL 1U

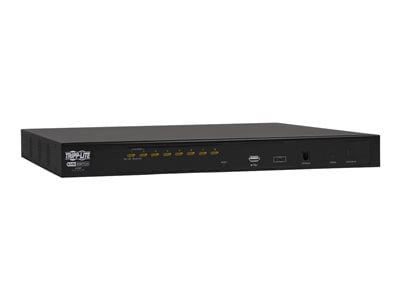

Tripp Lite 8-Port Rackmount KVM/USB Switch w/ On-Screen Display Steel PS/2 1U – KVM / USB switch – 8 x KVM / USB – 1 local user – rack-mountable
The B022-U08 NetDirector 8-Port 1U Rack-Mount KVM Switch allows IT professionals to control up to eight computers from one keyboard, mouse and monitor. The unit mounts into 1U of rack space and serves as either a stand-alone KVM switch or an expansion unit to other NetDirector KVM switches, such as Tripp Lite’s B020-U16-19-K. The B022-U08 is compatible with all major operating systems. Daisy-chain up to 31 additional units to control a maximum of 264 computers. When connected as part of a daisy-chain, each individual B022-U08’s position is sensed automatically without needing to manipulate DIP switch settings. The advanced on-screen display(OSD) is available in English, Spanish, French, German or Japanese and supports high-definition video up to 2048 x 1536. Compatible with both USB and PS/2 connections using the included cable kit, this KVM switch allows you to switch between connected computers using front-panel pushbuttons, the OSD or keyboard hotkey commands. And by connecting an optional Tripp Lite B051-000 Server Remote Control, you’ll be able to control all connected computers from anywhere via LAN, WAN or the Internet. Two levels of security allow you to delegate proper access to approved personnel up to four Users and one Administrator. A convenient auto-scan feature lets you monitor all connected computers without having to manually switch between them. A front USB 1.1 port lets you share flash drive or external hard drive data with the connected computers.
Whats in the Box
- Tripp Lite 8-Port Rackmount KVM/USB Switch w/ On-Screen Display Steel PS/2 1U
- External power adapter, rubber feet
- Ground cable
- Serial cable
- Keyboard / mouse / video / USB cable
- Rack mounting kit
Key Selling Points
Advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536
Compatible with USB and PS/2 keyboards and mice
Switch between computers via front-panel buttons, OSD or keyboard hotkeys
Auto-scan feature lets you monitor all connected computers without manually switching between them
Daisy-chain up to 32 units to control a maximum of 264 computers or servers
Position in daisy-chain sensed automatically without adjusting DIP switch settings
2 levels of security (4 Users and one Admin) allow you to delegate proper access
Included firmware upgrade cable keeps the software up to date
Compatible with all major operating systems
User-friendly OSD available in English, Spanish, French, German and Japanese
Front USB 1.1 port accepts USB peripherals, such as flash drives and external hard drives, for data sharing with all connected computers
Add Tripp Lite B051-000 Server Remote Control to operate all connected computers from anywhere via LAN, WAN or the Internet
Mounts into just 1U to save valuable rack space
Rugged steel housing and premium connectors built to last
