Description
Description: INDUSTRIAL GBE SWCH 8-PORT MGD POE
Tripp Lite 8-Port Managed Industrial Gigabit Ethernet Switch – Layer 2, 1 Gbps, PoE+ 30W, -40° to 75°C, DIN Mount – Switch – managed – 8 x 10/100/1000 (PoE+) – DIN rail mountable – PoE+ (240 W) – DC power – TAA Compliant
8-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the NGI-M08POE8-L2 is powered on and which Ethernet ports are showing activity.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This managed switch features eight PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-M08POE8-L2 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.
Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M08POE8-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, power/utility, security and water/wastewater applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web Configuration
The NGI-M08POE8-L2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection.
Pre-Loaded with Standard Layer 2 Network Management Software
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices.
Pre-Installed DIN Rail Clip Allows for Convenient Installation

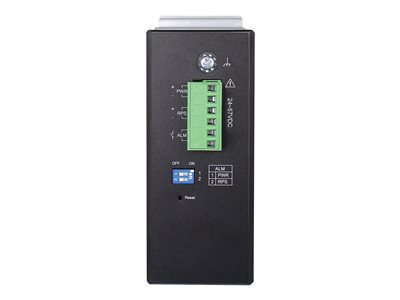

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24–57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-M08POE8-L2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Whats in the Box
- Tripp Lite 8-Port Managed Industrial Gigabit Ethernet Switch – Layer 2, 1 Gbps, PoE+ 30W, -40° to 75°C, DIN Mount
- DIN-rail clip
Key Selling Points
8 auto-negotiating RJ45 ports with Power over Ethernet connect devices over a LAN
PoE+ ports deliver up to 30W each with a total PoE budget up to 240W
Industrial-grade switch supports operating temperature range of -40° to 75°C
Comes pre-loaded with Layer 2 network management software for IGMP snooping
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
This product is covered by a 3-year limited warranty
