Description
Description: 3PH PDU 8.6KW 36 C13 6 C19 6 5-15/20R 0U
Tripp Lite 8.6kW 208/120V Three-Phase Basic PDU – 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack – Power distribution unit (rack-mountable) – 30 A – AC 120/208 V – 8.6 kW – 3-phase – input: NEMA L21-30R – output connecto
Single-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2130 features 36 C13 (208V), six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment

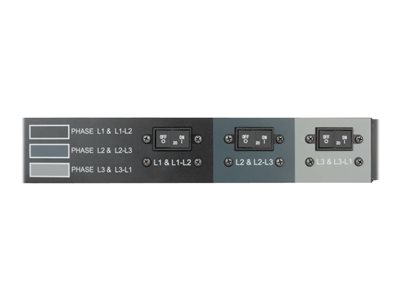

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Three 20A circuit breakers, one per output phase, protect connected components from dangerous overloads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

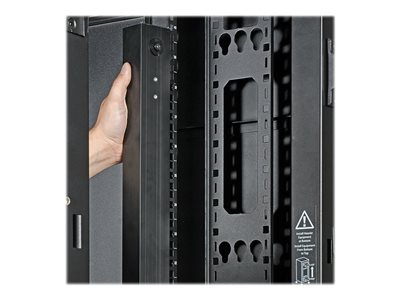

The 70-inch 0U PDU’s all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2130 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Key Selling Points
Ideal no-frills PDU for telecom, security, audio/video and other network applications

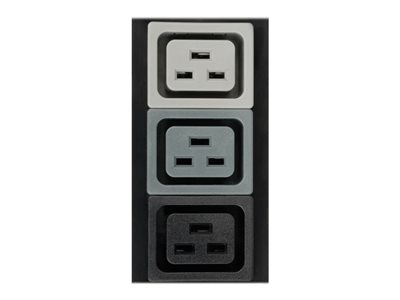

36 C13, 6 C19 and 6 5-15/20R outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
6 ft. power cord with NEMA L21-30P input connects to compatible AC source
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
This product is covered by a 2-year limited warranty
