Description
Description: 60KVA SMART OL 3-PHASE UPS 208/120V
Tripp Lite 60kVA Smart Online 3-Phase UPS 208/120V Small Frame Scalable – UPS – AC 120/127/208/220 V – 54 kW – 60000 VA – 3-phase WYE (star) – RS-232

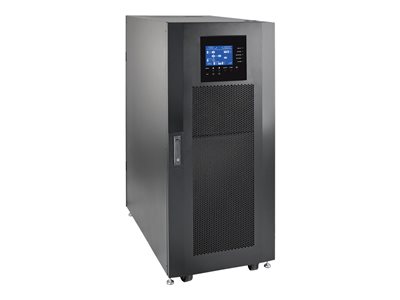

60kVA 54kW 3-Phase Small-Chassis UPS System
● Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
● Dual hardwire input design enables operation from up to 2 power sources
● Network-grade sine-wave AC output with 1% output voltage regulation and less than 2% output total harmonic distortion
● Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
● High 0.9 power factor offers higher kW output than lower-rated competing legacy designs
Pre-Installed WEBCARDLX Network Interface
● Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
● Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
● No Java required
Modular, Scalable Design for Maximum Flexibility
● Modular configuration with hot-swappable power and battery modules enables easy, fast maintenance with zero downtime
● Comes fully configured for 60kVA total capacity or 40kVA with N+1 fault tolerance
● Supports external ±120VDC battery options for extended runtimes
Optional Economy Mode
● Up to 98% efficiency in optional economy mode to lower operating and cooling costs
Wide Input/Narrow Output Voltage Operating Range
● Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
● Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode
Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
● Provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity
Automatic and Manual Bypass Options
● Keep connected equipment operational during routine maintenance or critical power module failure.
Key Selling Points
Fully configured for 80kVA capacity or 60kVA w/N+1 fault tolerance
Economy mode option helps reduce operating and cooling costs
Pre-installed WEBCARDLX network interface for 24/7 remote access
DSP/IGBT technology and 1% output voltage regulation
No internal battery modules, and requires external batteries to operate
