Description
Description: ISOLATION TRANS 500W 120V HOSP GRADE 4RC
Tripp Lite 500W Isolation Transformer Hospital Medical with Surge 120V 4 Outlet HG TAA GSA – Surge protector – 500 Watt – output connectors: 4
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
Key Selling Points
The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.
Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.
Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power environments to harmless levels
Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

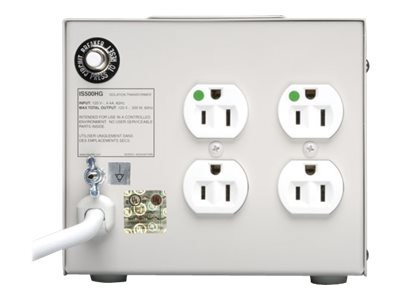

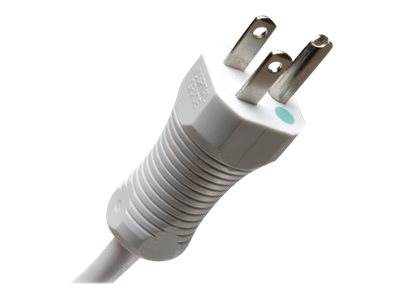

Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection and lighted power switch.

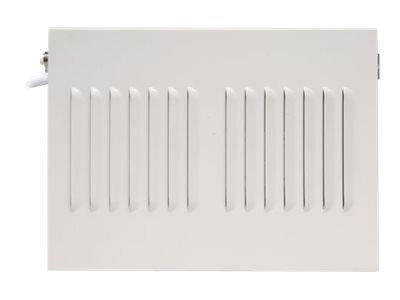

Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
