Description: 50/125 PATCH PANEL 40GB-10GB 42 MTP OM4
Tripp Lite 50/125 OM4 Pre-assembled 40GB-10GB Patch Panel 42 MTP QSFP-168LC – Patch panel – LC MM X 168 – black – 2U – 19″ – 168 ports

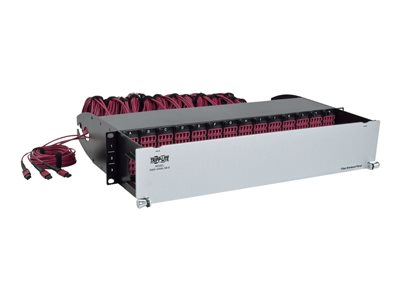

The N48K-42M8L168-B 50/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path to 100G and 400G speeds in the future. The 2U chassis features 14 breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP multimode cables for a total of 42 QSFP fiber switch ports breaking out to 168 LC ports.
Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-42M8L168-B uses all 168 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.
Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber.

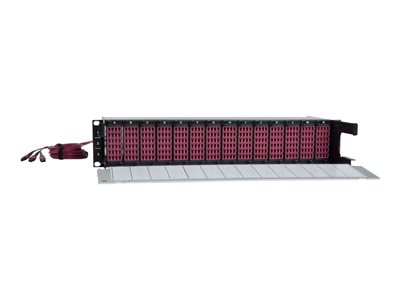

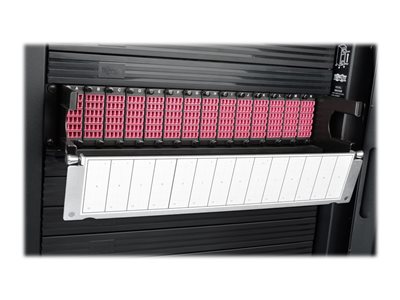

The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette’s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port.
Whats in the Box
- N48K-42M8L168-B 50/125 Breakout Fiber Patch Panel
Key Selling Points
Also future-proofs your network for eventual 100G and 400G speeds
Recommended for QSFP fiber-based Ethernet switches
OM4 fiber for highest throughput

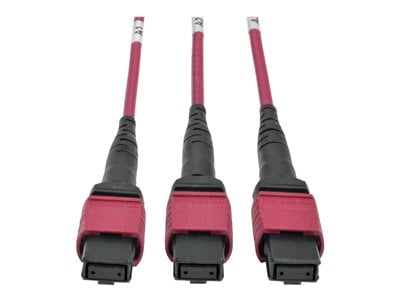

12 LC duplex ports and 3 built-in 2-meter MTP multimode cables per cassette
Total of 42 QSFP fiber switch ports and 168 LC ports
100% fiber utilization
Streamlined 1:1 port mapping
Up to 50% reduction in link attenuation
Color-coded magenta cables easily distinguishable in crowded switch
No unused LC ports as in Base12 wiring
Simple patch cable deployment
Optimized harness mapping
Hardwired cassette modules offer 30% improvement in insertion loss
LC patch cables protected
Provides wire mapping by matching each cassette’s labeled MTP cables to LC clusters
Writing space on inside panel for custom-labeling of ports
Insertion loss data available via unit’s serial number
Maximizes rack space and link performance
