Description
Description: PDU MONITORED 5-5.8KW 208 240V 20 C13
Tripp Lite 5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA – Power distribution unit (rack-mountable) – 30 A – AC 200/208/240 V – 5.8 kW – 1-phase – Ethernet 10/100 – input: NEMA L6-30 – ou

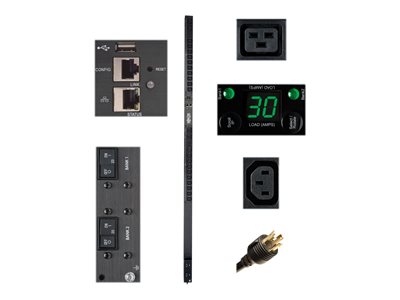

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Key Selling Points
Distributes Network-Grade Single-Phase Power
● 5/5.8kW 208/240V 30A monitored PDU with single-phase input/output
● NEMA L6-30P with 10 ft. cord connects to compatible AC power source
● Firmware upgrades support future product enhancements
24 Outlets Distribute AC Power
● 20 C13 and 4 C19 outlets split into 2 separate load banks
● Cord retention bracket prevents cables from becoming accidentally disconnected
