Description
Description: 40GBE FIBER CASS X12 FIBER MTP MPO
Tripp Lite 40Gb High Density Pass-Through Cassette 12 12-Fiber MTP/MPO – Fiber optic cassette – MTP/MPO X 12 – black

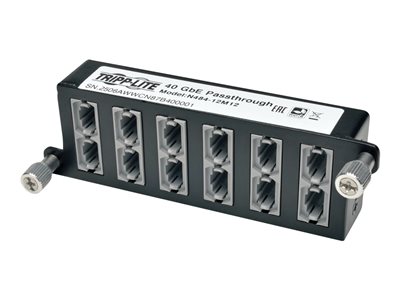

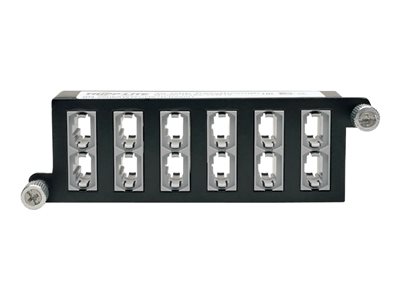

Tripp Lite’s N484-12M12 is a High Density 40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite’s N484-00U and N484-01U chassis’; up to 4 cassettes per N484-01U, or 1 per N484-00U. Each MTP/MPO connector is rated for up to 40GbE, with an extremely low insertion loss of 0.35db, well under the IEEE-802.3ae maximum channel loss spec of <25db. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
Whats in the Box
- N484-12M12 40GbE Pass-Through Cassette – (x12) 12-Fiber MTP/MPO ( Female )
- Quick Start Guide
Key Selling Points

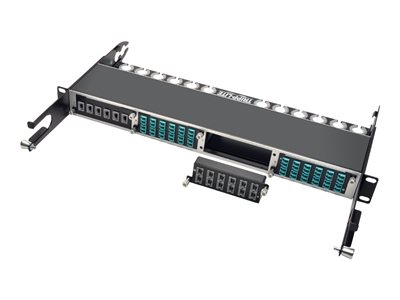

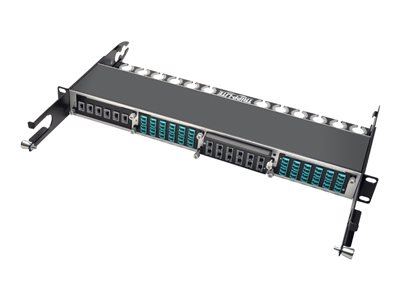

High Density Fiber Cassette for use with Tripp Lite’s N484-00U and N484-01U chassis’
40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections
Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
Type B adapters ( Key up to Key up )
Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
