Description
Description: 1M PASSIVE TWX DAC 400G QSFP-DD/QSFP-DD

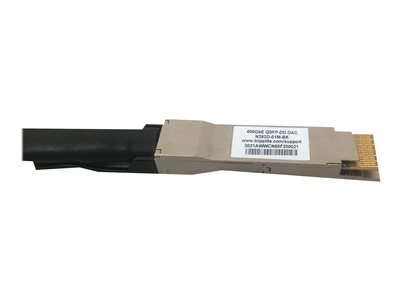

Tripp Lite 400GbE QSFPDD Passive TwinAx Black Direct Attach Cable, QSFPDD/QSFPDD, 1M – Black/Silver – 400GBase direct attach cable – QSFP-DD (M) to QSFP-DD (M) – 3.3 ft – twinaxial – SFF-8665 – passive – black, silver
Connect Network Equipment at Speeds Up to 400 Gbps
The N282D-01M-BK QSFPDD to QSFPDD 400GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It’s ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
Top-of-the-Line Construction
This one-meter copper cable integrates a 400G Ethernet-optimized (400 GbE) 38-position “board-as-connector” design with zinc die-cast QSFPDD connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 400-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand. Flexible30 AWG conductors maintain a smooth high-frequency response. The N282D-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss.
Fully Compliant and Compatible
It’s fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
Key Selling Points
Supports serial data rates up to 400Gbps
Combines eight SFP channels operating at up to 50Gpbs into one affordable 400GbE cable
Complies with QSFP-DD MSA specifications
Pull-tab ejectors for quick, easy connections
This product is covered by a Lifetime limited warranty
