Sale!

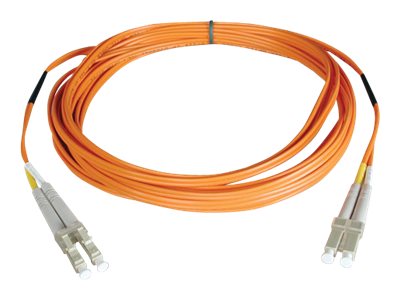

Tripp Lite 30M Duplex Multimode 50/125 Plenum Fiber Optic Patch Cable LC/LC 100′ 100ft 30 Meter patch cable 30 m orange N520-30M-P

Original price was: $224.64.Current price is: $213.41.

Tripp Lite 30M Duplex Multimode 50/125 Plenum Fiber Optic Patch Cable LC/LC 100′ 100ft 30 Meter – Patch cable – LC multi-mode (M) to LC multi-mode (M) – 30 m – fiber optic – duplex – 50 / 125 micron – plenum – orange

SKU: N520-30M-P Categories: , Brand: Tripp Lite

Description

Description: 30M DPLX MMF 50 FIBER CBL LC LC PLENUM
Tripp Lite 30M Duplex Multimode 50/125 Plenum Fiber Optic Patch Cable LC/LC 100′ 100ft 30 Meter – Patch cable – LC multi-mode (M) to LC multi-mode (M) – 30 m – fiber optic – duplex – 50 / 125 micron – plenum – orange

Tripp Lite’s 30-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PLENUM rated jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. Plenum rated cable used where local fire code calls for fireproof cable. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well.

Key Selling Points
Constructed with 50/125 micron cable
Length – 30M
Plenum Rated ( CMP ) jacket
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for Gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Tripp Lite warrants this product to be free from defects in materials and workmanship for life

Additional information

Weight 0.55 lbs
Dimensions 295 × 260 × 70 in
