Description
Description: 30M DUPLX MMF 50 FIBER CBL LC LC 100FT

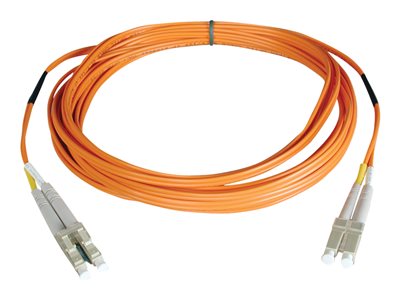

Tripp Lite 30M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 100′ 100ft 30 Meter – Patch cable – LC multi-mode (M) to LC multi-mode (M) – 30 m – fiber optic – duplex – 50 / 125 micron – orange
Tripp Lite’s 30-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, and 50 meter lengths.
Whats in the Box
- 30M duplex MMF cable LC/LC 50/125 fiber
Key Selling Points
Constructed with 50/125 micron cable
Length – 30M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for Gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric apeture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Tripp Lite warrants this product to be free from defects in materials and workmanship for life
