Description
Description: PDU SWCHD 208/230V 20A 7 C13 1 C19
Tripp Lite 3.3-3.7kW Single-Phase Switched PDU, LX Platform Interface, 208/230V Outlets (7 C13/1 C19), C20/L6-20P, 0U 1m/39 in., TAA – Power distribution unit (rack-mountable) – 20 A – AC 208-230 V – 3.7 kW – 1-phase – Ethernet 10/100, USB, serial – input

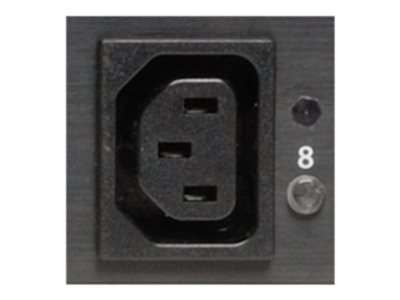

The PDUMV20HVNET2LX 3.3–3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for your IT or industrial application, it features eight switched outlets (seven C13 and one C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

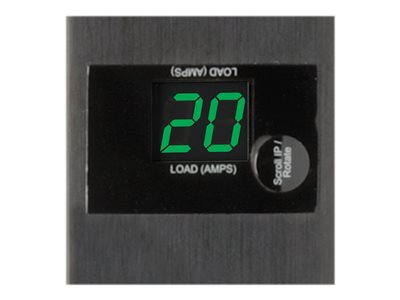

A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Key Selling Points
3.3–3.7kW 208/230 switched PDU with single-phase input
C20 inlet compatible with wide variety of user-supplied power cords
Detachable 10 ft. cord with NEMA L6-20P plug included
Firmware upgrades support future product enhancements
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Included plug-lock inserts prevent cables from becoming accidentally disconnected
Reports total connected equipment load in real time
