Description
Description: PDU MON 3.3-3.7KW 20 C13 4 C19 208 230V
Tripp Lite 3.3-3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA – Power distribution unit (rack-mountable) – 20 A – AC 208-230 V – 3.7 kW – 1-phase – Ethernet 10/100, USB, serial – i
The PDUMNV20HVLX 3.3–3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of
user-supplied power cords for connecting to an AC source, generator or
protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.

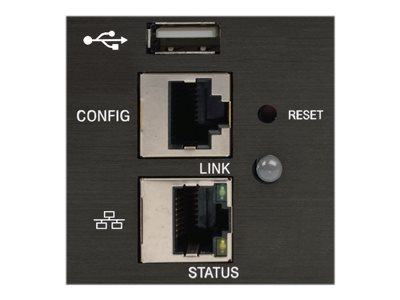

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Key Selling Points
● 3.3–3.7kW 208/230V single-phase monitored 0U PDU
24 outlets-20 C13, 4 C19-with plug-lock insert sleeves
Built-in Java-free LX Platform interface for remote access 24/7
Digital ammeter for on-site load monitoring in real time
C20 inlet input with detachable 10 ft. NEMA L6-20P power cord

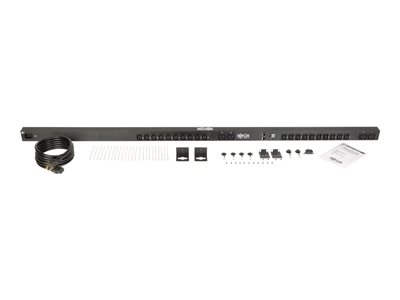

PDUMNV20HVLX 3.3–3.7kW Single-Phase Monitored PDU
Built-in LX Platform interface
Detachable NEMA L6-20P to C19 power cord, 10 ft.
Configuration cable
(24) Plug-lock inserts
Rack-mounting hardware
PDUMVROTATEBRKT mounting bracket accessory
Owner’s manual
Distributes and Monitors Network-Grade AC Power
3.3–3.7kW 208/230V 20A monitored PDU with single-phase input
C20 inlet compatible with wide variety of user-supplied power cords
