Description
Description: 2200VA 1800W UPS SMART OL RM LCD 120V
Tripp Lite 2200VA 1800W UPS Smart Online Rackmount LCD 120V USB DB9 2U TAA – UPS (rack-mountable) – AC 100/110/115/120/127 V – 1.8 kW – 2200 VA – 1-phase – RS-232, USB – output connectors: 7 – 2U – 19″ – TAA Compliant
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss
This 2200VA UPS system protects connected equipment against equipment damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Featuring a 1800W capacity, high 0.8 power factor, true on-line operation with pure sine wave output and zero transfer time to battery, the SU2200RTXLCDTAA provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment.
Reliable, Expandable Battery Backup
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 12 minutes of support at half load and four minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. For mission-critical applications demanding continuous uptime, the fully scalable 2.2kVA UPS can provide expandable runtime with optional external battery packs, such as Tripp Lite’s BP48V242UTAA (sold separately).
ENERGY STAR Certification Helps the Environment and Your Cash Flow
Operating with a high 94% efficiency in optional economy mode, the ENERGY STAR-certified 2200VA UPS system can save BTU heat output and energy costs by meeting strict EPA guidelines.
6 Outlets in Dual Switchable Load Banks for Remote Control
Six NEMA 5-15/20R outlets are divided into two switchable breakered load banks. Each numbered load bank may be individually powered on and off remotely to reset or reboot connected equipment. This UPS system also features one non-breakered NEMA L5-20R outlet.

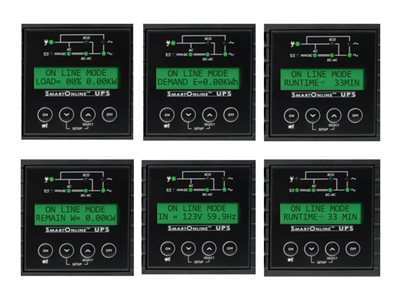

Intuitive Front-Panel LCD Interface
Operating the UPS system and monitoring connected equipment is easy with this interactive LCD screen. It reports operating mode and nine selectable data screens, including load, voltage and battery information. It also gives you 16 screens worth of configuration and setup options.
Optional WEBCARDLX Network Interface Offers 24/7 Access
An accessory slot accommodates the optional Java-free HTML5-based WEBCARDLX interface, which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
Advanced Communications Ports
USB and DB9 ports (cables are included) enable data-saving unattended shutdown when used with Tripp Lite’s free downloadable PowerAlert software. Capabilities include UPS and line power status messaging, timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices.
Versatile Installation Options
Hardware is included for mounting the 2.2kVA UPS system in 2U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITWM for 2-post rack mounting or wall mounting. Use the optional 2-9USTAND for mounting in an upright tower position.
TAA-Compliant for GSA Schedule Purchases
The SU2200RTXLCDTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible Design
The SU2200RTXLCDTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Key Selling Points
2.2kVA UPS protects connected equipment against damage and downtime due to blackouts, brownouts, surges and line noise
Zero transfer time between AC power and battery for uninterrupted operation
570 joules protect connected devices from damaging power surges and spikes
Optional external batteries provide additional runtime for essential applications
Interactive LCD screen delivers detailed status, preset and control options
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
