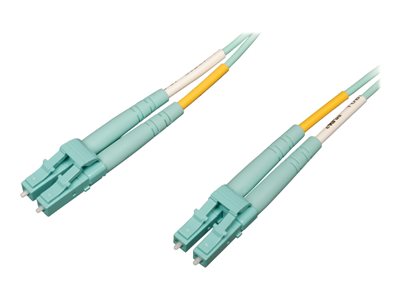

Tripp Lite 20M 10Gb/100Gb Duplex Multimode LC/LC OM4 Aqua Fiber Patch Cable 20 Meters patch cable 19.8 m aqua N820-20M-OM4


Please request a quote

Tripp Lite 20M 10Gb/100Gb Duplex Multimode LC/LC OM4 Aqua Fiber Patch Cable 20 Meters – Patch cable – LC multi-mode (M) to LC multi-mode (M) – 19.8 m – fiber optic – duplex – 50 / 125 micron – OM4 – halogen-free – aqua

SKU: N820-20M-OM4 Categories: , Brand: Tripp Lite

Description

Description: 20M MM 50 OM4 FIBER CBL AQUA LC LC 65FT
Tripp Lite 20M 10Gb/100Gb Duplex Multimode LC/LC OM4 Aqua Fiber Patch Cable 20 Meters – Patch cable – LC multi-mode (M) to LC multi-mode (M) – 19.8 m – fiber optic – duplex – 50 / 125 micron – OM4 – halogen-free – aqua

The N820-20M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides three times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable. Backward compatible with existing 50/125 fiber, the aqua-colored N820-20M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It’s commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.

Whats in the Box

  • N820-20M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable, 20 m (65 ft.)

Key Selling Points
Allows 40/100 Gb serial transmission up to 300 m (@ 850 nm)
Provides 3x more bandwidth than conventional 62.5 µm multimode fiber
Backward compatible with existing 50/125 fiber
Meets current IEEE 802.3ae and TIA LOMMF standards
Ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers
Commonly used with VCSEL and LED laser light sources
50/125 duplex glass fiber construction
Low-smoke zero-halogen jacket
Sturdy dual LC male connectors meet insertion loss standards
Aqua-colored for identification as a 10 Gb cable

Additional information

Weight 0.4 lbs
Dimensions 200 × 150 × 30 in
