Description
Description: UPS SMART OL 1000VA 900W 208V 230V LCD
Tripp Lite 208/230V 1kVA 900W Double-Conversion UPS, 2U, Extended Run, SNMP Card Option, LCD, USB, DB9 – UPS (rack-mountable) – AC 200/208/220/230/240 V – 900 Watt – 1000 VA – 1-phase – RS-232, USB – output connectors: 6 – 2U – 19″

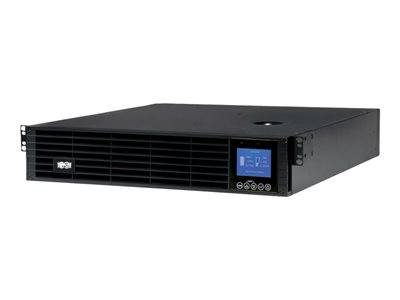

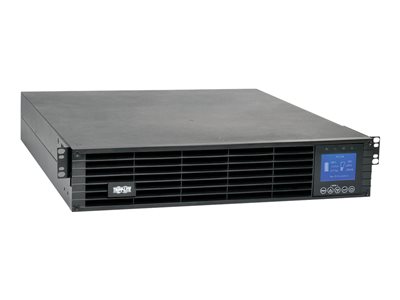

The SUINT1000LCD2U SmartOnline 208/230V 1kVA 900W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It continuously regulates AC output within 2% of the selected nominal output voltage with zero transfer time from online to battery mode.
Featuring six C13 outlets (four of them in two switchable two-outlet load banks) and a C14 input, the SUINT1000LCD2U has an internal battery that provides 12.3 minutes of support at half load and 4.7 minutes at full load. Adding external battery packs, such as BP24V36-2US (sold separately), provides extended runtime.
Managing the SUINT1000LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency.
EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 627-joule surge suppression rating protects your equipment from harmful power surges. Adding an optional Tripp Lite network management card, such as WEBCARDLX and SNMPWEBCARD, permits remote management of the UPS, including reboots and activity logs.
Key Selling Points
Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for critical voice, data, medical and industrial IT applications
+/-2% voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
6 C13 outlets, including 4 in 2 switchable 2-outlet load banks
C14 input
627-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime
Supports half load for 12.3 min. and full load for 4.7 min.
Internal batteries designed for hot-swap field replacement
Expandable runtime with optional external battery packs, such as Tripp Lite’s BP24V36-2US
Battery independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries

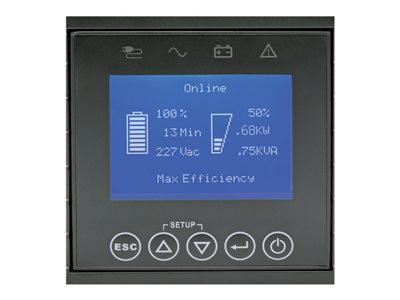

Interactive Front-Panel LCD
Reports detailed status information, including load and battery levels
Offers advanced configuration options, including output voltage and power strategies
5 Power Strategies
Auto Adaptive enables high efficiency operation as necessary for ideal equipment protection
Max Efficiency favors economy operation with high 96% efficiency
Max Quality favors on-line, double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time
Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency (50/60 Hz)
Highly Customizable
Selectable auto-restart from 0 to 60 sec. after AC power is restored
Selectable minimum battery charge level before auto-restart
Schedule system reboot if USB signal from connected device is lost
Set overload thresholds and low battery levels for alert and shutdown
Optional Network Management Cards
Compatible Tripp Lite UPS management card options WEBCARDLX and SNMPWEBCARD support a wide variety of UPS control and monitoring capabilities
Communications Ports
USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software (available via free download at www.tripplite.com/poweralert)
Energy Star Qualified
