Description
Description: 2PT MINI DPT 1.2 TO HDMI MULTI STREAM
Tripp Lite 2-Port Mini DisplayPort to HDMI Multi-Stream Transport 4Kx2K @ 24/30Hz – Video splitter – 2 x HDMI + 1 x DisplayPort – desktop – TAA Compliant

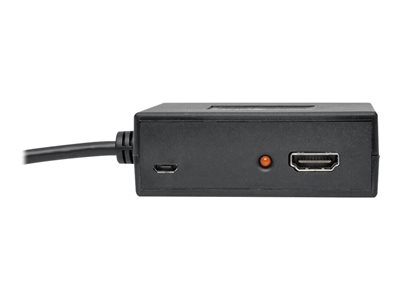

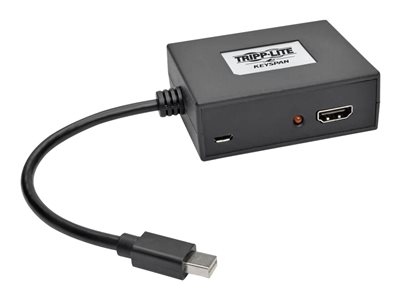

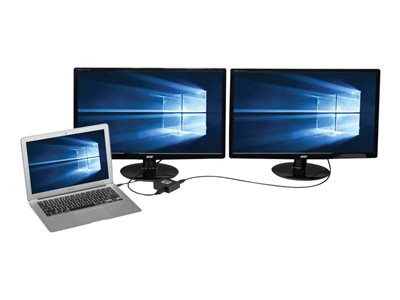

The B155-002-HD-V2 2-Port Mini DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or monitors to the MDP output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.
The B155-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
The B155-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included 0.91 m (3-ft.) USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to an MDP source. LEDs indicate when the monitors are receiving a signal.
Whats in the Box
- Tripp Lite 2-Port Mini DisplayPort to HDMI Multi-Stream Transport 4Kx2K @ 24/30Hz
- USB cable – 91.4 cm
- Mini DisplayPort cable – 15.2 cm
Key Selling Points
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 2 monitors simultaneously in mirror mode
Extends desktop across 2 monitors in extended mode
Combines 2 monitors into one large monitor in video wall mode

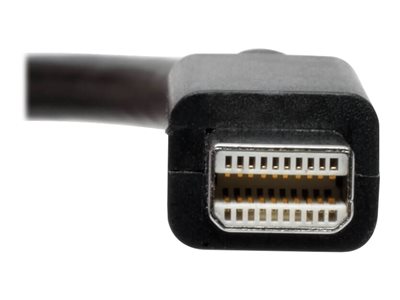

Built-in 6 in. cable connects directly to Mini DisplayPort source

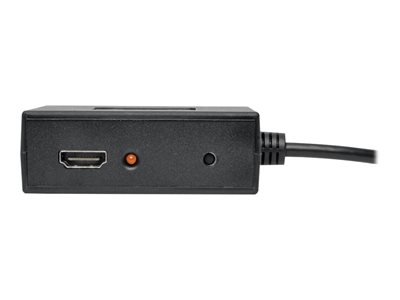

LEDs indicate when monitors are receiving a signal
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Bus-powered via included USB Micro-B cable
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
