Description
Description: 2PT HDMI OVER IP RECEIVER EXTD RS232 SER
Tripp Lite 2-Port HDMI Over IP Receiver / Extender RS-232 Serial, IR Control TAA – Video/audio/infrared/serial extender – receiver – up to 328 ft – TAA Compliant

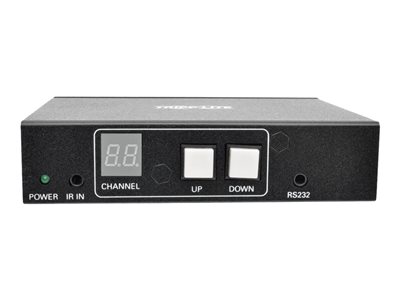

The B160-200-HSI 2-Port HDMI Audio/Video with RS-232 Serial and IR Control over IP Receiver extends and distributes HDMI audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 m).
The B160-200-HSI is designed for managed network
switches with IGMP, which allow login and remote management via switch
interface. You can connect up to 64 transmitters and 255 receivers in a single
managed switch installation.**
The B160-200-HSI supports
video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It works with any analog
or digital source, including VGA and DisplayPort . Dual HDMI ports allow the
connection of two displays. This receiver extends IR control signals that control a source, such as
a Blu-ray player, from a remote display, as well as RS-232 signals at serial
baud rates up to 57600 Bps.
Compatible with Tripp Lite’s B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.
*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.
**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
Key Selling Points
Converts source video to IP-based signal transmitted to and distributed through network switch
Extends signal up to 328 ft. (100 m) from switch
Can also connect directly to transmitter up to 328 ft. away
Dual HDMI outputs for connecting 2 displays
Allows login and remote management via switch interface
Works with any analog or digital source, including VGA and DisplayPort
Connect up to 64 transmitters and 255 receivers in single managed switch installation
