Description
Description: PDU SWCHD 2.9K 120V 24 5-15/20R LX PLATF
Tripp Lite 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord w/L5-30P, 0U, TAA – Power distribution unit (rack-mountable) – 30 A – AC 100/120/127 V – 3.05 kW – 1-phase – Ethernet 10/100 – input: NEMA L5-30

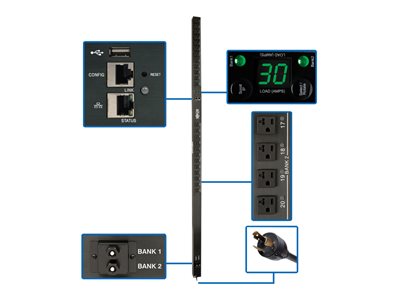

The PDUMV30NETLX 2.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

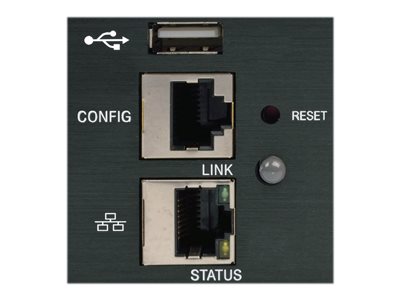

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

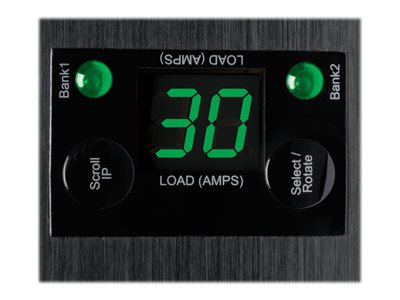

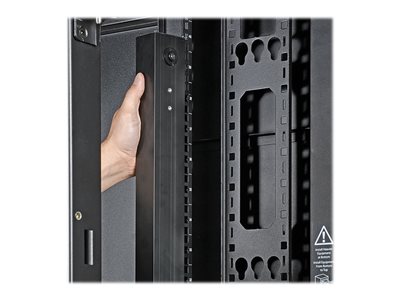

A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Key Selling Points
● 2.9kW 120V switched PDU
● Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
● NEMA L5-30P plug with 10 ft. cord connects to compatible AC power source
● Firmware upgrades support future product enhancements
24 Switched Outlets Distribute AC Power

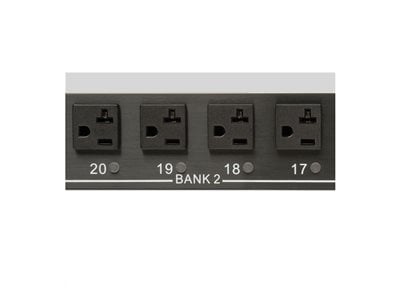

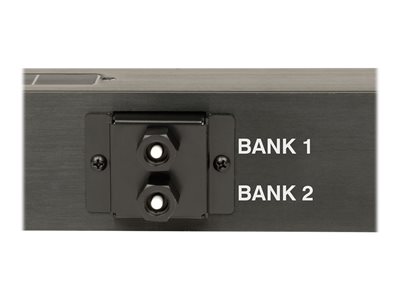

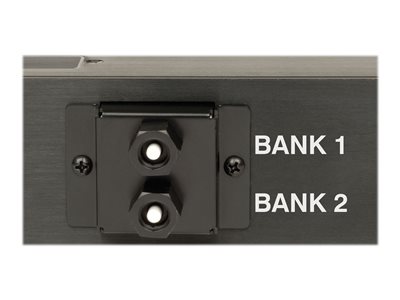

● 24 NEMA 5-15/20R outlets split into 2 separately breakered load banks
● Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
