Description
Description: 3 PHASE PDU SWCHD 17.3KW 240V 24 C13 C19

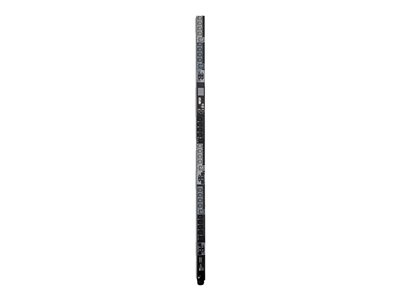

Tripp Lite 17.3kW 3-Phase Switched PDU, LX Platform Interface, 240V Outlets (24 C13/6 C19), Touchscreen LCD, NEMA L22-30P 415V, 0U, TAA – Power distribution unit (rack-mountable) – 24 A – AC 415 V – 17.3 kW – 3-phase – Ethernet 10/100, USB, serial – input
Distributes, Monitors and Manages Network-Grade AC Power
● 17.3kW 415/240V switched PDU with 3-phase input
● Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

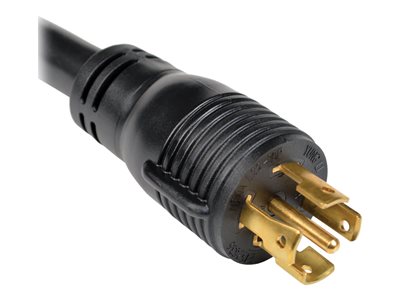

● NEMA L22-30P 415V plug with 1.8m (6 ft.) cord connects to compatible AC power source
● Firmware upgrades support future product enhancements

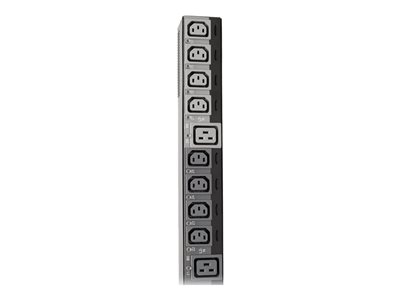

30 Switched 240V Outlets Distribute AC Power
● 24 C13 and 6 C19 outlets split into 6 separately breakered load banks
● Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
● Plug-lock insert sleeves prevent cables from becoming accidentally disconnected
Color Touchscreen LCD
● Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
● Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device
● Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials
Built-In LX Platform Interface
● Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
● Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
● No Java required
Broad Communications Compatibility
● Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
● Supports automatic and manual assignment of IP address
Essential Safety Features
● Tiered access allows administrator and guest to log in via web browser
● Immediate alert notifications via email or SNMP traps
● Supports user-specified alarm notification thresholds
● Real-time clock backup maintains day/date even if PDU is unpowered
Easy 0U Installation in EIA-Standard 19 in. Racks
● Mounts vertically using included toolless buttons or rack-mounting brackets
● Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
● Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Key Selling Points
● 17.3kW 240V 3-phase switched 1.8m 0U PDU
● 30 individually controllable outlets-24 C13, 6 C19
● Built-in LX Platform interface for remote access 24/7
● NEMA L22-30P 415V PDU input with 1.8m AC power cord
● Touchscreen LCD with mobile access option via QR code
