Description
Description: 16PT RM IP KVM SWCH ON SCREEN DISP STEEL

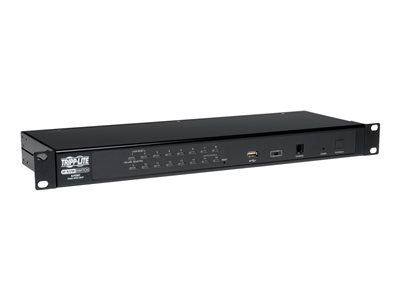

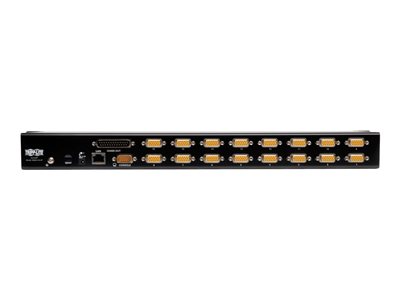

Tripp Lite 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U – KVM switch – 16 x KVM port(s) – 1 local user – desktop, rack-mountable
The B022-U16-IP NetDirector 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts.

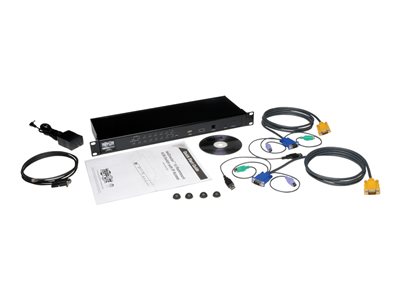

Whats in the Box
- Tripp Lite 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U
- External power adapter
- 2 x keyboard / mouse / video cable – 1.83 m
- Rack mounting kit
Key Selling Points
Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
Remotely access computers via LAN, WAN or the Internet via Windows or Java
Windows- and Java-based non-browser applications provide access without a browser
Advanced on-screen display supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 (@ 60 Hz) at the remote console
Panel Array Mode – remotely monitor multiple ports at the same time.
Create up to 64 separate accounts
3 levels of security (Admin, User and Select) allow you to delegate proper access
Features advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES
Supports RADIUS and LDAP/S remote authentication
LEDs built into the port-selection pushbuttons indicate when a computer is connected, powered on and selected
Included firmware upgrade cable keeps the software up to date
User-friendly web management interface can be displayed in English, Spanish, French, German and Japanese
Included cable kits let you use either USB or PS/2 keyboards and mice
View remote sessions in black and white, reducing the amount of data traveling over the network and improving keyboard/mouse response time over IP
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
Windows-based log server records events and saves them to a searchable database
Users who are logged in simultaneously can communicate via message board and manage port access
Mounts into just 1U to save valuable cabinet or rack space
Rugged steel housing and premium connectors built to la
