Description
Description: 16PT KVM RACK CONS 1U RM W/ 17IN LCD
Tripp Lite 16-Port Rack Console KVM Switch w/ 17″ LCD PS/2 1U – KVM switch – 16 x KVM port(s) – 1 local user – rack-mountable

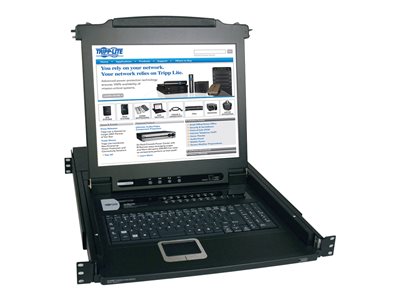

Tripp Lite’s B020-016-17 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers. The B020-016-17 has a built-in 17″ LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers. This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit (one of each is included). An extra HD15 port allows an additional VGA monitor to be connected. Two PS/2 ports also are included on the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. When not in use, the B020-016-17 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported). Heavy-duty steel housing stands up to frequent use.
Whats in the Box
- 16 Port KVM Switch w/17″ LCD
- B015-000 USB to PS/2 adapter (1)
- AC power adapter & Cord
- Firmware-upgrade cable
- Owners Manual (CD) w/Quick Start Guide
Key Selling Points
Combines a 16-port KVM switch, 17″ LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
Mounts into 19”-wide rack, 24”-37” deep
Gives you control of up to 16 computers/servers from a single, easily accessible console – ideal when rack space is at a premium
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
Eliminates need to purchase costly separate monitors, keyboards and mice for each computer/server
Switch quickly and easily between the 16 ports via on-console buttons, on-screen display or keyboard hot key commands
Hot pluggable; add or remove computers without having to power down the switch
Auto-scan mode automatically sequences through all active ports that are accessible to the user
Wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024
DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD
Enhances security by limiting access to an administrator and up to 4 local users
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

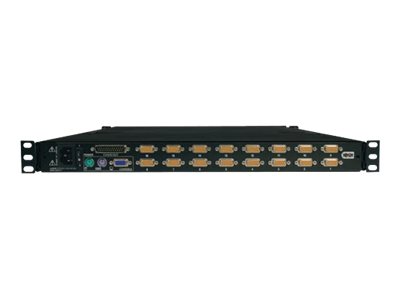

Includes additional HD15 VGA monitor port and PS/2 keyboard/mouse ports, so you can connect an external console or a Tripp Lite B051-000 IP Remote Access Unit
Compatible with all major operating systems for easy integration into your existing structure(special keys on Mac and Sun keyboards are not supported)
Firmware is easily upgradable with included cable and utility
Heavy-duty steel housing stands up to frequent use
