Description
Description: 16PT KVM SWCH RACK CAT5 1U RM TAA GSA
Tripp Lite 16-Port Cat5 KVM Switch VGA USB PS/2 1URM Rackmount – KVM switch – CAT5 – 16 x KVM port(s) – 1 local user – desktop – TAA Compliant

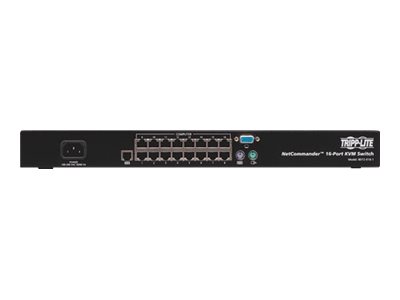

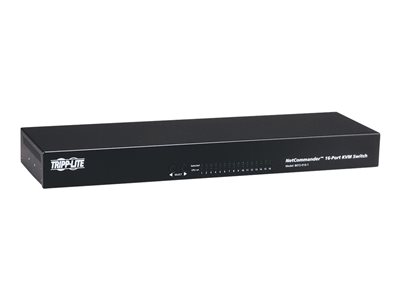

Tripp Lite’s 16-Port NetCommander 1U Rackmount Cat5 KVM Switch, is the next generation of the cost-effective, feature rich, KVM switches. It’s sleek, 1U design and compact size, features RJ45 connection ports that utilize inexpensive Cat5 patch cables, reducing the amount of cable clutter normally found with traditional KVM cabling. Easily switch between CPU’s with Push Buttons, Hot-Key commands, or built-in On Screen Display (OSD) menu function. Compatible with PS/2 and USB computers, VGA, SVGA, or XGA monitors, as well as all major operating systems. Constructed of heavy-duty steel housing.
Whats in the Box
- Tripp Lite 16-Port Cat5 KVM Switch VGA USB PS/2 1URM Rackmount
- Serial cable – 1.8 m
Key Selling Points
Mounts in a standard 19 in. rack
Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
IP Remote Access for Fewer Trips to the Server Room
Control this KVM switch over IP: remote access means there’s no need to travel to the server room or network closet
Java-based application allows access via web browser; a non-browser client that can bypass browser-related Java Security prompts is available
1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
Supports both IPv4 and IPv6
Simplifies IT Tasks
On-screen display, hot keys and remote toolbar for easy use
Free NetCommander-AXS Management Software gives you remote access and control over all your Tripp Lite NetCommander IP KVM switches (B070 and B072 series)
Video resolutions up to 1920 x 1080 @ 60 Hz are supported
2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port
BIOS-level control of any brand and model server, regardless of the server’s condition and network connectivity
Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were directly stored on it
Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit; a B078-101-USB-1 Server Interface Unit can be used for Virtual Media support, but only at speeds up to 1Mbps
Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
System-sent messages to SNMP server notify you of network failures
Supports RADIUS and LDAP/S authentication
Log tracks events such as logins, reboots and network setting changes on your installation
Advanced Security Features
Multi-level password protection: create administrator accounts with full access and user accounts with limited access
128-bit SSL and HTTPS encryption for highest security standards
You can install SSL certificates to ensure secure transactions between web servers and browsers
Built to Last
Flash-upgradable firmware over the network
Heavy-duty steel housing stands up to frequent use
