Description
Description: 16PT GETH SWCH UNMGD W/ POE+ 260W METAL

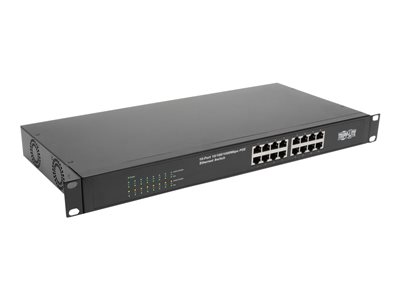

Tripp Lite 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE+, 230W, Metal Housing – Switch – unmanaged – 16 x 10/100/1000 (PoE+) – rack-mountable – PoE+ (230 W)
The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 230W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

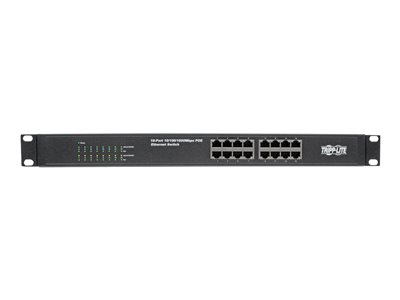

This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It’s plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

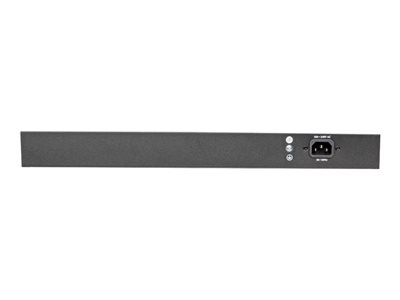

The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
Whats in the Box
- Tripp Lite 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE+, 260W, Metal Housing
- Rubber feet
- Rack mounting kit
Key Selling Points
● 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
● Auto-negotiable 10/100/1000 Mbps
● Automatic MDI/MDIX cross-over detection
● 32 Gbps switching capacity (2 Gbps per port with full duplex)
● LEDs indicate power, connection, activity and PoE status per port
● Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
260W Total PoE+ Budget
