Description
Description: 3 PHASE PDU MONITORED 14.5KW 200V 208V
Tripp Lite 14.5kW 3-Phase Monitored PDU, LX Interface, 200/208/240V Outlets (42 C13/6 C19), LCD, IEC 309 60A Blue, 3m/10 ft. Cord, 0U 1.8m/70in. Height, TAA – Power distribution unit (rack-mountable) – 35 A – AC 200/208/240 V – 14.5 kW – 3-phase – Etherne
The PDU3EVN10G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.
Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

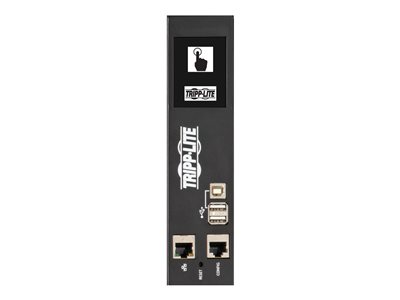

A color touchscreen LCD lets you toggle between menus to input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Key Selling Points
Distributes and Monitors Network-Grade AC Power
● 14.5kW 200/208/240V monitored PDU with 3-phase input
● IEC 309 60A Blue (3P+E) plug with 10 ft. cord connects to compatible AC power source
● Firmware upgrades support future product enhancements
48 Outlets Distribute AC Power
● 42 C13 and 6 C19 split into 3 separately breakered load banks

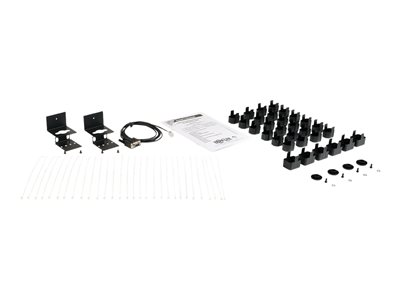

● Plug-lock insert sleeves prevent cables from becoming accidentally disconnected
