Description
Description: 12U WM RACK ENCL SVR CAB GLASS FRNT DOOR
Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet w/ Glass Front Door – Rack – cabinet – wall mountable – black – 12U – 19″

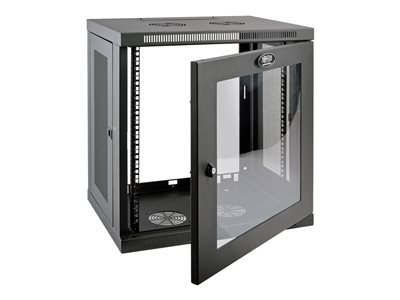

The SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet. The SRW12UG comes fully assembled and ready to mount to the wall(or use Tripp Lite’s optional SRCASTER caster kit to make it a mobile rolling rack). Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Whats in the Box
- SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- (20) M6 screws
- (20) M6 cage nuts
- (20) M6 cup washers
- (20) 12-24 screws
- Removable mounting plate
- (3) Mounting plate screws
- (2) Keys
- Owner’s manual
Key Selling Points
Perfect for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 12U of space
Maximum load capacity of 200 lb.
Lets you monitor equipment without unlocking the enclosure
Prevents equipment tampering
Reduces acoustic noise
Provides extra visual flair
Side panels and front door lock securely
Vented panels allow generous airflow that keeps equipment cool
Rotate cabinet 180° before mounting to open reversible front door left or right
Convenient ports with removable covers allow cable routing through top and bottom
Ships fully assembled for quick installation
Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement

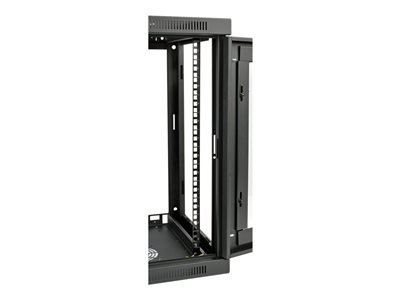

Vertical mounting rails adjust in 7/8 in. increments to house equipment up to 16.5 in. deep
Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
Rails support square-hole or threaded-hole mounting
Rack spaces numbered for easy reference
Provides physical equipment and media security required for PCI DSS(Payment Card Industry Data Security Standard) compliance
