Description
Description: INTL INVERTER CHRG 1250W 230V 12VDC 7.5/

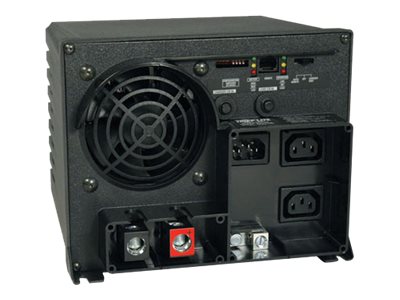

Tripp Lite 1250W APS 12VDC 230V Inverter / Charger w/ Auto Transfer Switching ATS 2xC13 Outlets – DC to AC power inverter – 12 V – 1.25 kW – output connectors: 2 – black
The APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.
The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 1250W of continuous power, 1875W up to one hour, or 2500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX1250 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power and sends it to two C13 outlets for unlimited runtime. When powered by an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX1250 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.
Whats in the Box
- APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger
- Owner’s manual
Key Selling Points
Generates safe, stable, computer-grade 230V AC power from 12V battery bank
Ideal for powering tools, saws, motors, portable lighting, small appliances and computer equipment in heavy-load conditions
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans
Functions as a vehicle inverter, standalone AC power source or extended-run UPS
Features dual C13 outlets
Unlimited runtime with variety of user-supplied batteries
Meets Normal and Peak Power Demands
1250W of continuous power
1850W of reserve power up to 1 hr.
2500W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
Automatic overload detector, built-in cooling fan and resettable AC circuit breaker protect unit from damage
Automatic Transfer Switching
Transfer relay switches to inverter power during blackout in 10 ms
3-position switch enables Auto, Charge Only or System Off mode
DIP switches configure high and low voltage auto-transfer
Serves as battery charger when external 230V AC power is supplied and powering connected equipment
Protects battery from overcharging and overdischarging
Low-battery protection prevents excessive battery depletion
DIP switches configure wet/gel charging profiles
RJ45 communication port allows connection of optional remote control module, such as Tripp Lite’s APSRM4
Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
Resists moisture, vibration and impact
Built-in mounting feet for installation on any rigid horizontal surface
Detachable 2 m C13-to-C14 power cord connects to AC power source
