Description: 1PT USB2 CAT5 CAT6 TRANSMITTER RECEIVER
Tripp Lite 1-Port USB 2.0 over Cat5 Cat6 Extender Kit Video Transmitter & Receiver 164′ – USB extender – USB, USB 2.0 – over CAT 5 – up to 164 ft – TAA Compliant
Tripp Lite’s B203-101-PNP 1-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit transmits data from your computer to a USB 2.0 peripheral up to 164 ft. (50 m) away. It has plug-and-play functionality, meaning you don’t have to install drivers or software. For added convenience, the transmitter has a built-in USB A/B cable for connection to your computer. The USB signals travel between the transmitter and receiver units over user-supplied Cat5/Cat6 cable. It’s a simple, cost-effective solution for connecting your computer to a printer or other USB peripheral that lacks network connectivity and is farther than 16 feet away from your computer, which is the distance limitation for USB cables. For example, you can use the B203-101-PNP to connect an impact printer to a server in another room. This extender kit is also convenient for making connections in areas without network availability. By using Cat5/Cat6 cable to carry signals, the B203-101-PNP extends your installation farther than is possible with standard USB cables. Plus, Cat5/Cat6 cabling is readily available at low cost. For maximum signal integrity, use solid-conductor Cat5/Cat6 UTP cabling, such as Tripp Lite’s N202-series. The B203-101-PNP extender kit can achieve data transfer rates up to 480 Mbps. It’s backward compatible with USB 1.1 peripherals, but at USB 1.1 speeds. The B203-101-PNP works with all major operating systems (Windows and Mac). Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Key Selling Points
Send data to a USB 2.0 device located up to 164 ft. from the source
USB signals travel over a single user-supplied Cat5/Cat6 cable

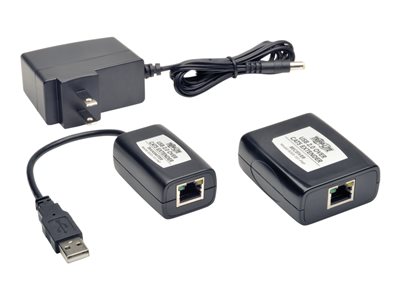

Includes transmitter with built-in USB A/B cable and a 1-port receiver
Supports data transfer rates up to 480 Mbps
Cat5/Cat6 cabling exceeds the 16 ft. distance limitation of USB cables
Allows connection to devices that lack network connectivity in areas beyond the reach of standard USB cables
Makes connections in areas without network availability
Allows source to be in a secure location, separate from peripherals
Cat5/Cat6 cabling is cost-effective and readily available
For best results, use solid-conductor Cat5/Cat6 UTP cable, such as Tripp Lite’s N202-series cable
Plug-and-play functionality; no software or drivers required
Built-in 1 ft. USB A/B cable connects source and transmitter
User-supplied Cat5/Cat6 cable connects transmitter and receiver

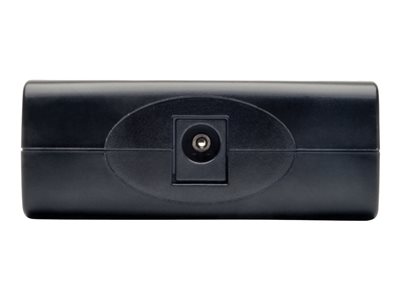

Receiver unit has an external power supply
Compatible with all major operating systems (Windows and Mac)
Backward compatible with USB 1.1 devices (at USB 1.1 speeds)
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
