Description: PDU MONITORED 1.4KW 120V 16 5-15R LX TAA
Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P Plug, 0U, TAA – Power distribution unit (rack-mountable) – 15 A – AC 100/120/127 V – 1.4 kW – 1-phase – Ethernet 10/100, USB – input: NEMA
The PDUMNV15LX 1.4kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for any IT or industrial application, it features 16 NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

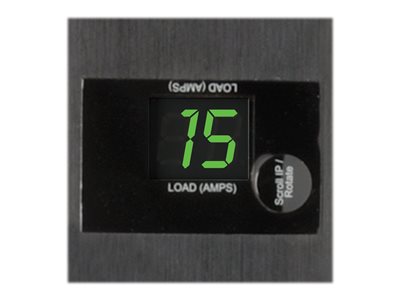

A digital ammeter allows you to monitor the PDU’s current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Key Selling Points
1.4kW 120V monitored PDU with single-phase input/output

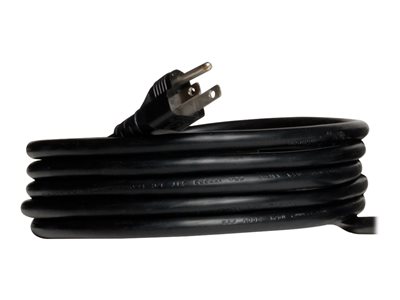

NEMA 5-15P with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
16 NEMA 5-15R outlets deliver power to connected equipment
Cord retention brackets help prevent cables from becoming accidentally disconnected
Reports total connected equipment load
Supports IP-address self-ID
