Description
Description: PDU SWCHD MINI 1.4KW 2 5-15R LX PLATF
Tripp Lite 1.4kW 100/120/127V Single-Phase Switched Mini PDU – LX Platform Interface, 6 ft. Cord, 0U, TAA – Power distribution unit (rack-mountable) – 15 A – AC 100/120/127 V – 1.52 kW – 1-phase – Ethernet 10/100 – input: NEMA 5-15P – output connectors: 2

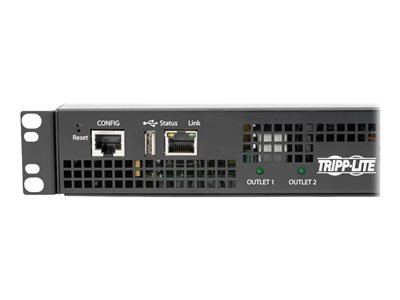

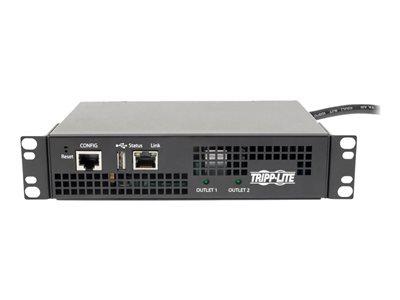

This 0U PDU is an ideal low-cost option for small-scale network configurations where only one or two outlets are needed. It features two NEMA 5-15R individually switched outlets, which can be remotely controlled to turn on, turn off, recycle or lock out power to unresponsive devices. Front-panel LEDs indicate each outlet’s on/off status. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Automated alerts help prevent accidental overloads, power loss and downtime. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA). A six-foot power cord with NEMA 5-15P plug connects the PDU15NETLX 0U PDU to a compatible AC power source, generator or protected UPS. The switched PDU mounts vertically in 0U of rack space, on a wall or under a counter using the included mounting brackets and user-supplied hardware. Its half-width rack-mount form factor allows you to place it on a shelf or desktop. The PDU15NETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. The rugged metal PDU15NETLX comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Key Selling Points
Built-in LX Platform interface allows full remote access 24/7 with email notifications
2 switched NEMA 5-15R outlets can be remotely rebooted, locked or shut down
NEMA 5-15P input with 6 ft. cord connects to mains power, generator or UPS system
Mounts on wall, under counter or in 0U of rack space using included brackets
Ideal low-cost option for small-scale installations requiring no more than 2 outlets
