Startech .com MSA Uncoded SFP Transceiver Module1000BASE-BX1GbE Gigabit Ethernet BiDi Fiber (SMF)MSA Uncoded Transceiver1000BASE… SFP1000BXDST


Please request a quote

StarTech.com MSA Uncoded SFP Transceiver Module – 1000BASE-BX – 1GbE Gigabit Ethernet BiDi Fiber (SMF)
Optical fiber cable compatible – Spans afar and provides speedy data transmission rates between servers and network components.
For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution.
With 1000Base-BX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable.
MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity.
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two..
TECHNICAL SPECS: 1000BASE-BX | 1Gbps | 1G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1490nmTx/1310nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi).
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won’t void your OEM warranty and supported by our Tech Advisors 5/24..
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules.

SKU: SFP1000BXDST Categories: , Brand: Startech

Description

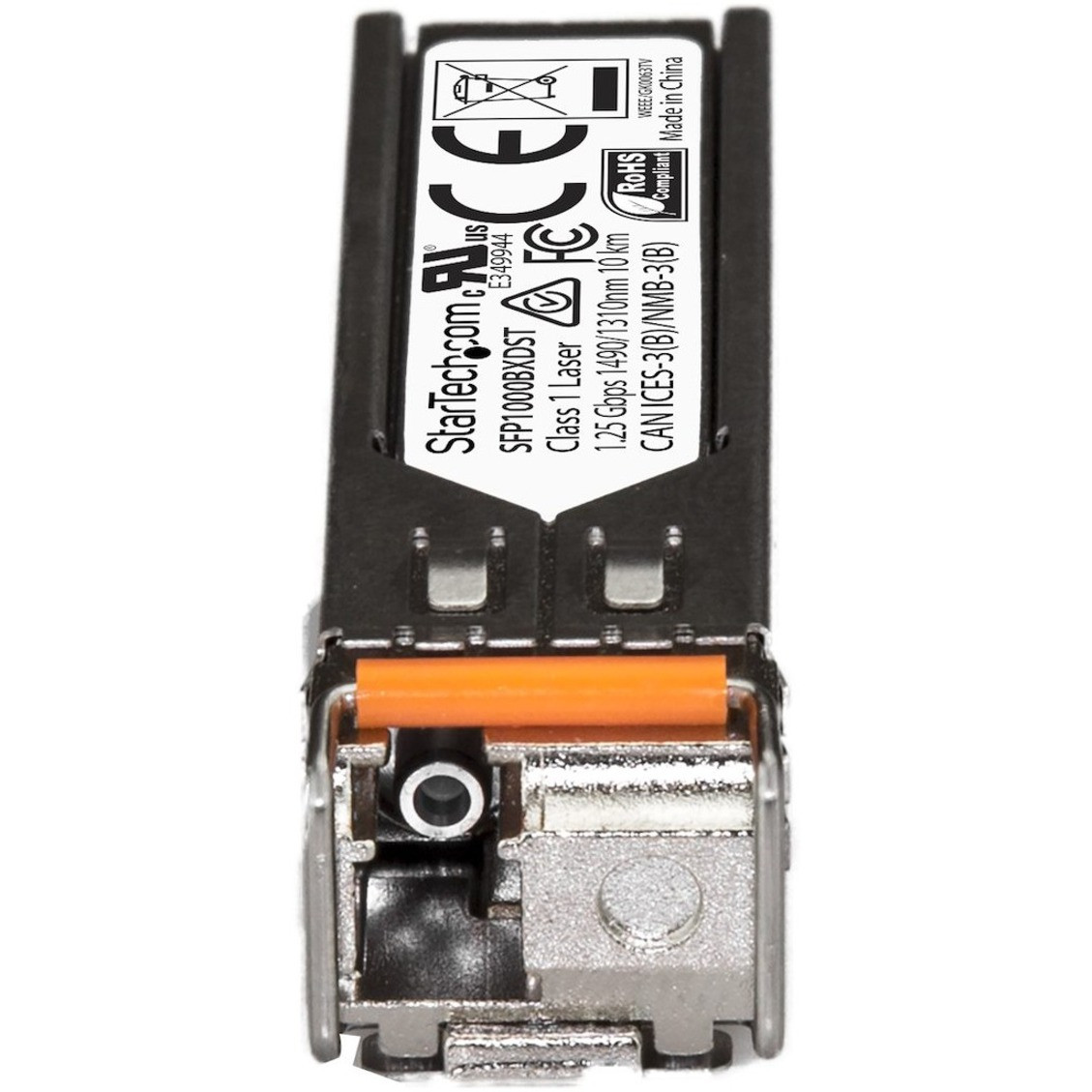

StarTech.com MSA Uncoded SFP Transceiver Module – 1000BASE-BX – 1GbE Gigabit Ethernet BiDi Fiber (SMF)

The SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com’s SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

  • Wavelength: 1490nmTx/1310nmRx
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • Power Consumption: Less than 1 Watt
  • DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Additional information

Weight 0.04 lbs
Dimensions 2.20 × 0.60 × 0.50 in
