Startech .com HPE JD094B-BX60-D Compatible SFP+ Module10GBASE-BX10 GbE Gigabit Ethernet BiDi Single Mode Fiber (SMF) Transceiver -… JD094B-BX60-D-ST


Please request a quote

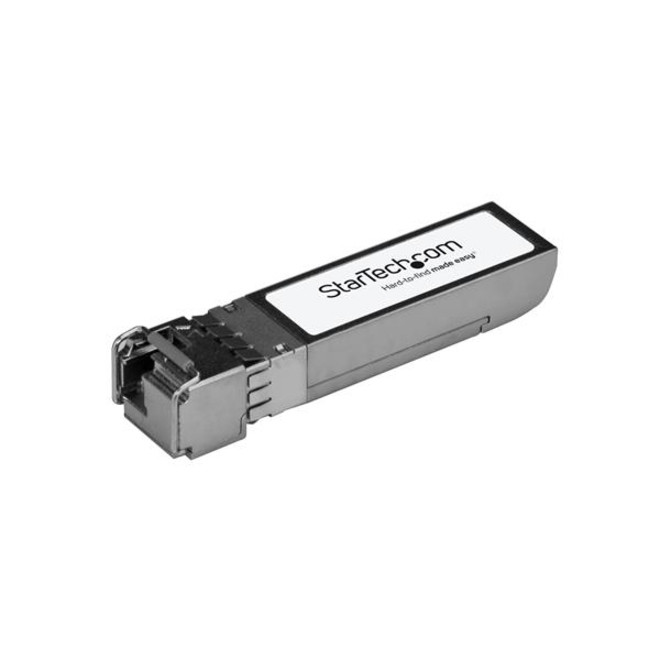

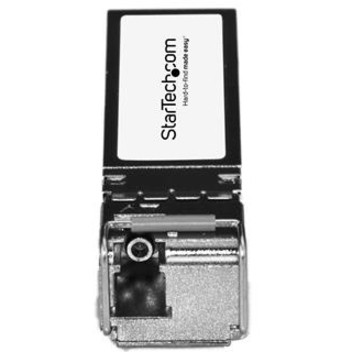

StarTech.com HPE JD094B-BX60-D Compatible SFP+ Module – 10GBASE-BX – 10 GbE Gigabit Ethernet BiDi Single Mode Fiber (SMF) Transceiver
Optical fiber cable compatible – Spans afar and provides speedy data transmission rates between servers and network components.
Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology.
With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance.
With 10GBase-BX technology, enjoy up to 10Gbps data transfer rate over optical fiber cable.
100% HPE JD094B-BX60-D COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others.
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
TECHNICAL SPECS: 10GBASE-BX.
10Gbps.
10G Bi-Directional Downstream.
Single Mode (SMF).

SKU: JD094B-BX60-D-ST Categories: , Brand: Startech

Description

StarTech.com HPE JD094B-BX60-D Compatible SFP+ Module – 10GBASE-BX – 10 GbE Gigabit Ethernet BiDi Single Mode Fiber (SMF) Transceiver

The JD094B-BX60-D-ST is an HP JD094B-BX60-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com’s JD094B-BX60-U-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 60 km (37.3 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

  • Wavelength: 1330nmTx/1270nmRx
  • Maximum Data Transfer Rate: 10Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 60 km (37.3 mi)
  • Power Consumption: Low power consumption
  • DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.

Additional information

Weight 0.11 lbs
Dimensions 0.00 × 0.00 × 0.00 in
