Startech .com HDBaseT over CAT5e HDMI Receiver for ST424HDBT230ft (70m)1080pExtend the HDMI signal from your ST424HDBT Matrix switch ov… STHDBTRX
Original price was: $148.99.$141.54Current price is: $141.54.

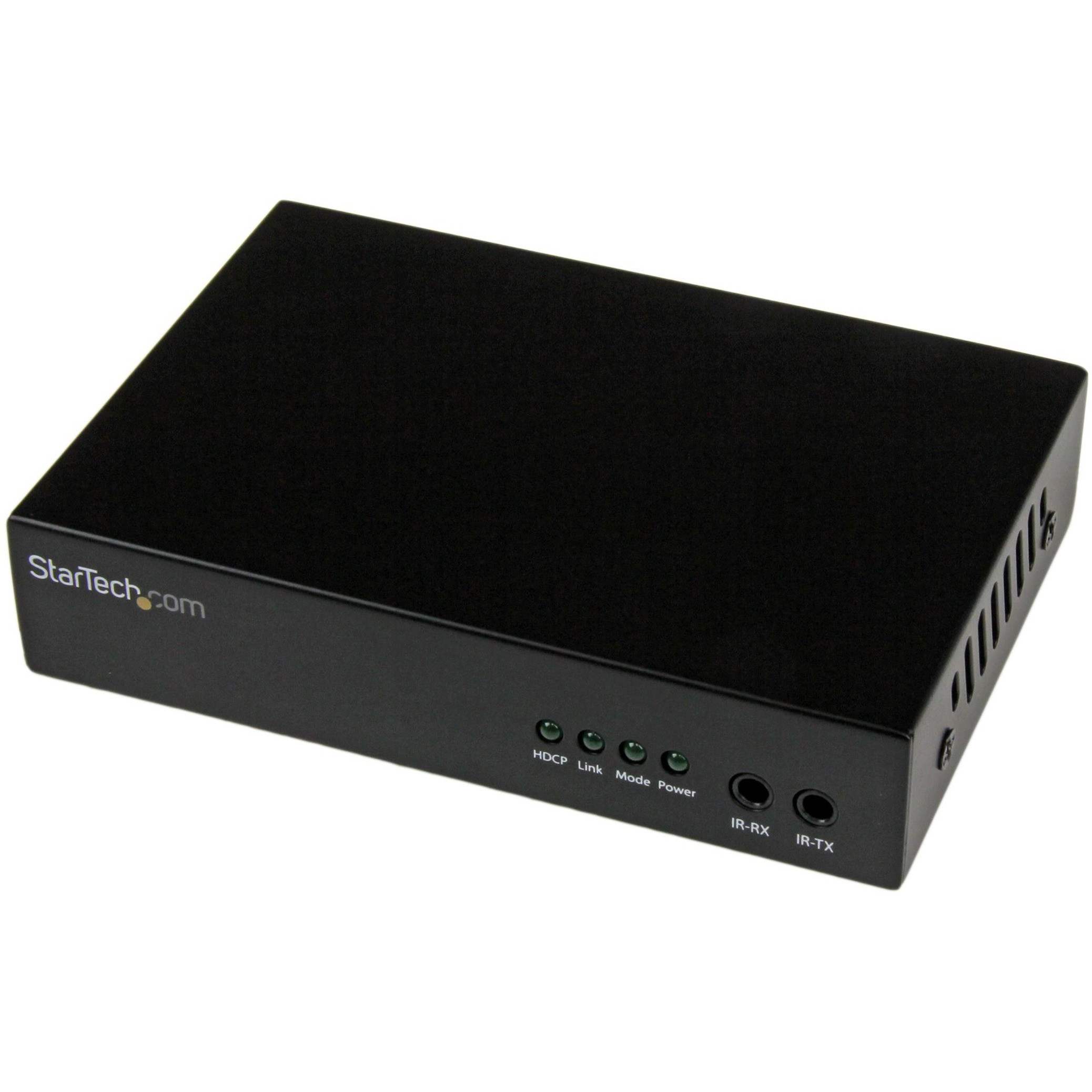

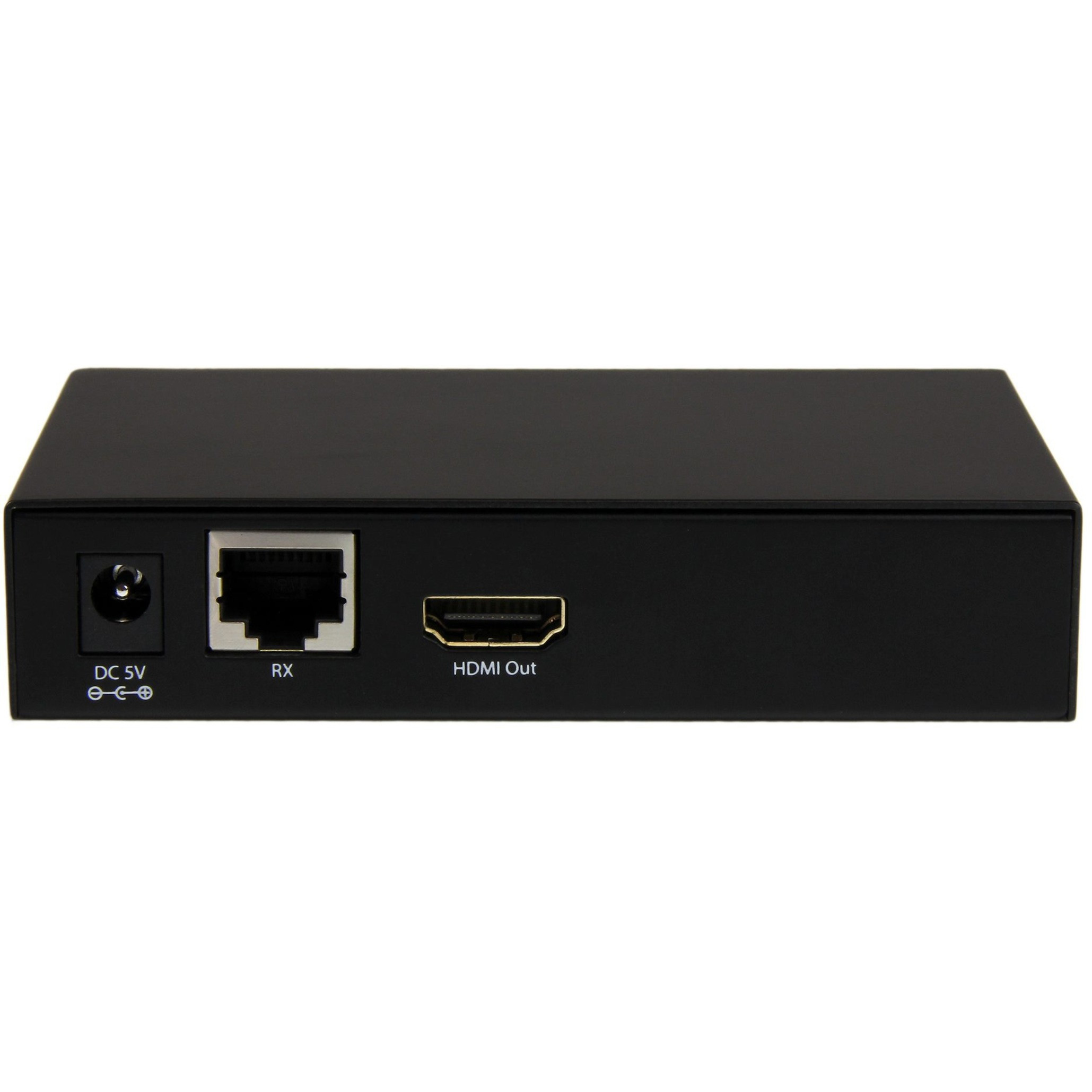

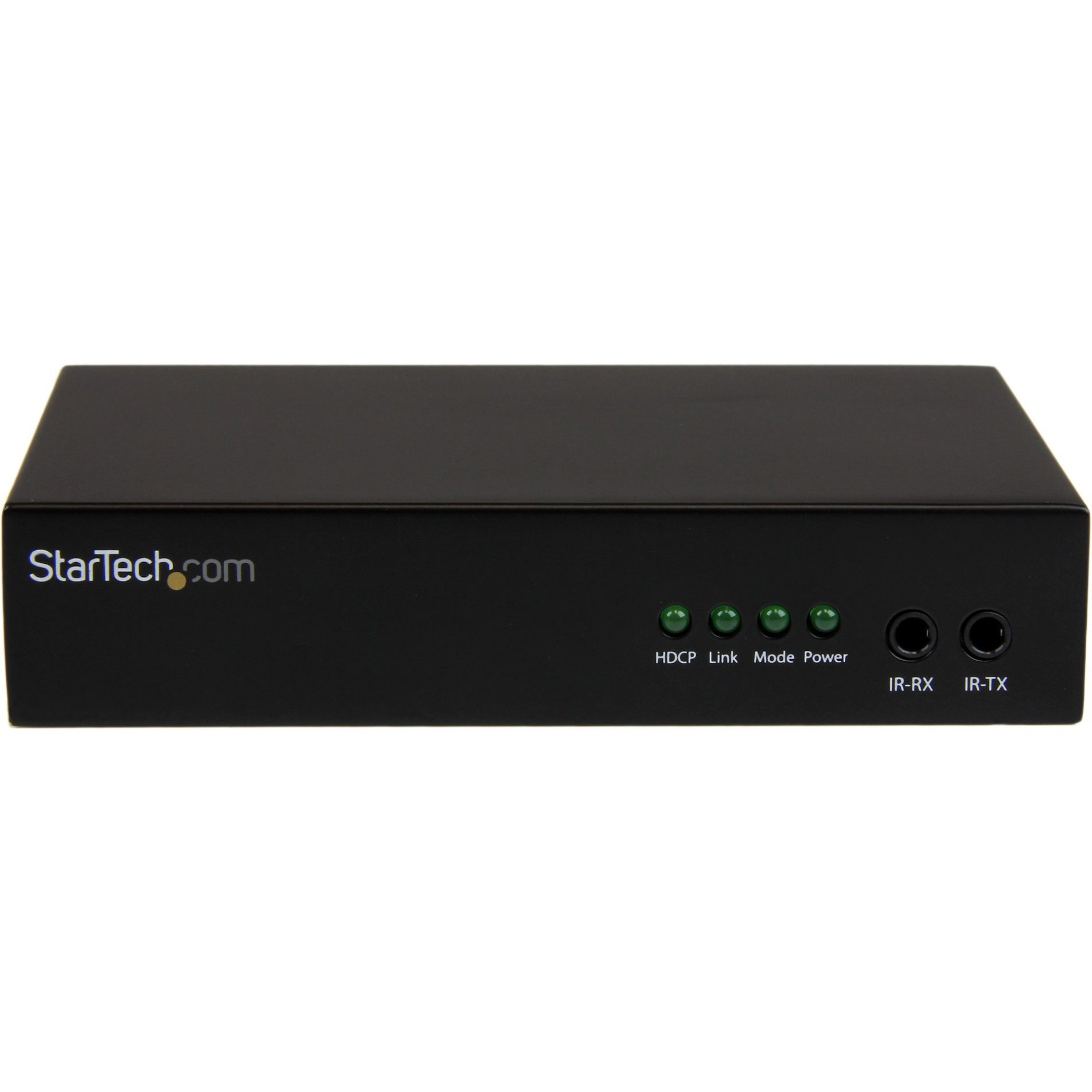

StarTech.com HDBaseT over CAT5e HDMI Receiver for ST424HDBT – 230ft (70m) – 1080p
230ft (70m) HDMI extension over Cat5/6 Cabling.
IR extender/receiver cables included.
Mounting brackets included.
Support for video resolution up to 1920×1200/1080p.
230ft (70m) HDMI extension over Cat5/6 Cabling.
IR extender/receiver cables included.
Mounting brackets included.
Support for video resolution up to 1920×1200/1080p.
Description
StarTech.com HDBaseT over CAT5e HDMI Receiver for ST424HDBT – 230ft (70m) – 1080p
This HDBaseT receiver works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display.
Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense and hassle of running multiple devices with an HDMI matrix switch and extender in one clutter-free system. Because the signal is extended using standard Cat5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors.
For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender and receiver cables.
The STHDBTRX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 5.90 × 8.30 × 2.90 in |
| Package Contents | 1 X Hdmi Receiver Unit, 1 X Mounting Brackets, 1 X Ir Kit (Transmitter/Receiver), 1 x Universal Power Adapter (NA/UK/EU/AUS), 1 X Quick Install Guide, |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | STHDBTRX |
| Manufacturer Website Address | http://www.startech.com |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | StarTech.com |
| Product Name | HDMI over Cat5 / Cat6 Receiver for ST424HDBT - 230ft (70m) - 4K / 1080p |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Graphics Modes | WUXGA |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE, REACH |
| Maximum Video Resolution | 1920 x 1200 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 230 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Receiver Height | 0.90" |
| Receiver Width | 3" |
| Receiver Depth | 4.30" |
| Transmitter Weight (Approximate) | 7.60 oz |
| Product Color | Black |
| Input Voltage | 5 V DC |
| Certifications & Standards | FCC, CE, |
| Length | 4.3" |
| Product Material | Aluminum |
| GTIN | 0065030855013 |
| UPC | 065030855013 |
| EAN | 0065030855013 |
| UNSPSC | 45111815 |
