Startech .com Brocade 40G-QSFP-LR4 Compatible QSFP+ Module40GBASE-LR4 40GE QSFP+ 40GbE Single Mode Fiber SMF Optic Transceiver 10km DD… 40G-QSFP-LR4-ST


Please request a quote

StarTech.com Brocade 40G-QSFP-LR4 Compatible QSFP+ Module – 40GBASE-LR4 40GE QSFP+ 40GbE Single Mode Fiber SMF Optic Transceiver 10km DDM
Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances.
40Gigabit Ethernet – Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles’ utilization.
With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance.
100% BROCADE 40G-QSFP-LR4 COMPATIBLE QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Brocade switches and routers to deliver dependable 40GbE connectivity.
TECHNICAL SPECS: 40GBASE-LR4.
40Gbps.
Single Mode (SMF).
LC Connector.
1270nm to 1330nm.

SKU: 40G-QSFP-LR4-ST Categories: , Brand: Startech

Description

StarTech.com Brocade 40G-QSFP-LR4 Compatible QSFP+ Module – 40GBASE-LR4 40GE QSFP+ 40GbE Single Mode Fiber SMF Optic Transceiver 10km DDM

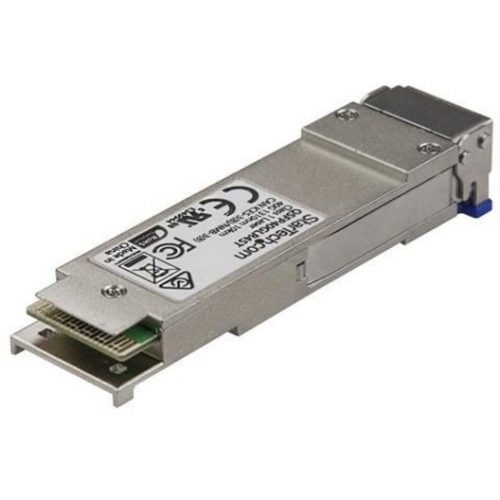

The 40G-QSFP-LR4-ST is a Brocade 40G-QSFP-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1270nm to 1330nm
  • Maximum Data Transfer Rate: 40 Gbps
  • Type: Single Mode
  • Connection Type: MPO Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • MTBF: 95,832,027 hours
  • Power Consumption: < 1.3W
  • Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Additional information

Weight 0.11 lbs
Dimensions 0.00 × 0.00 × 0.00 in
