Startech .com 4 Port PCI Express Serial Card w/ Breakout CableAdd 4 RS232 serial ports to any PC using a single PCI Express expansion slot -… PEX4S553B

Original price was: $116.99.Current price is: $111.14.

StarTech.com 4 Port PCI Express Serial Card w/ Breakout Cable
Native single chip design.
Includes a full profile and low profile/half-height bracket.
On chip 256-byte depth FIFO in transmit/receive path of each port.
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps.
Supports hardware and software flow control.
Supports data transfer rates up to 250Kbps on each port.
Compliant with PCI Express base specifications revision 1.0a.
Automated out-of-band flow control using CTS/RTS and DSR/DTR.
Native single chip design.
Includes a full profile and low profile/half-height bracket.
On chip 256-byte depth FIFO in transmit/receive path of each port.
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps.
Supports hardware and software flow control.
Supports data transfer rates up to 250Kbps on each port.
Compliant with PCI Express base specifications revision 1.0a.
Automated out-of-band flow control using CTS/RTS and DSR/DTR.

Description

StarTech.com 4 Port PCI Express Serial Card w/ Breakout Cable

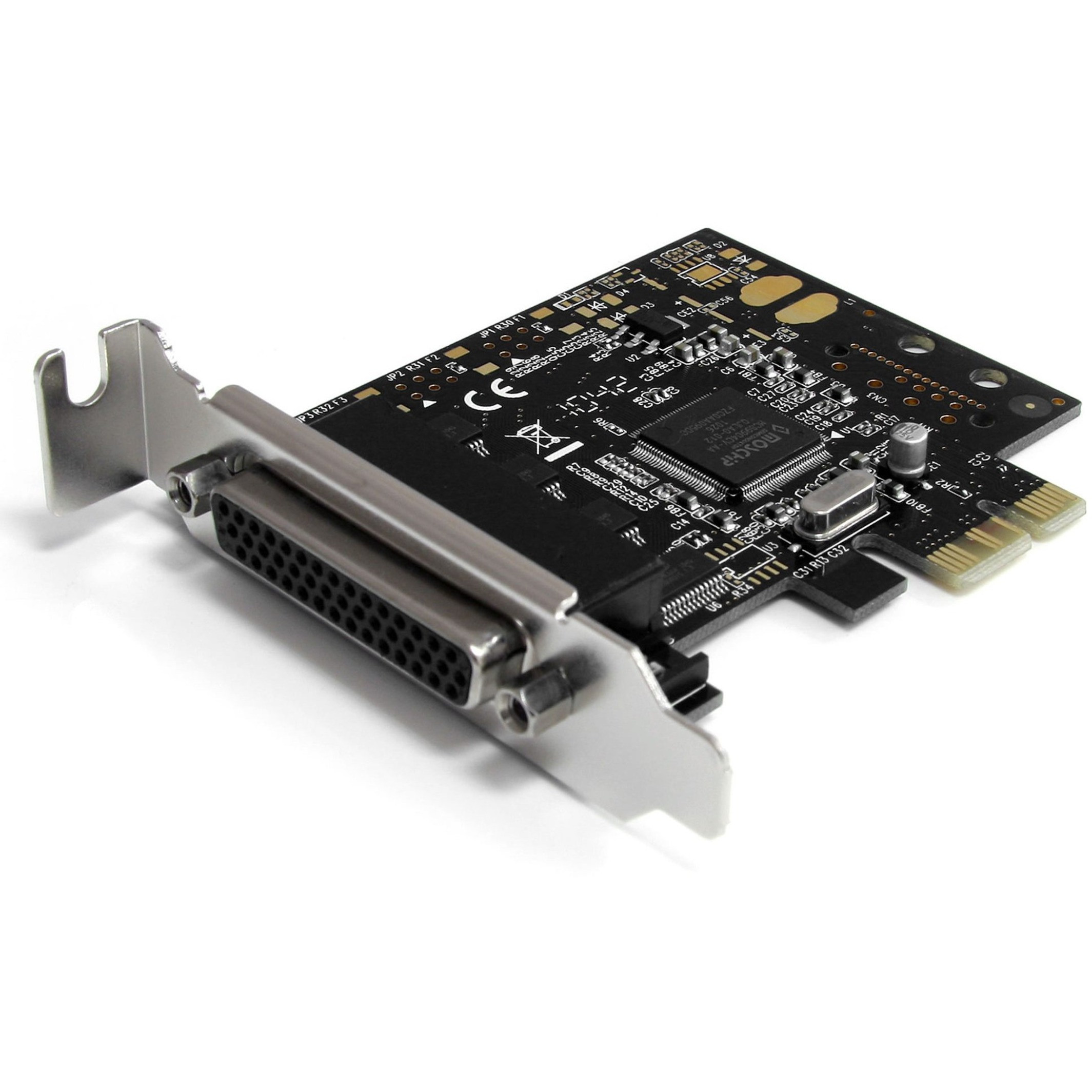

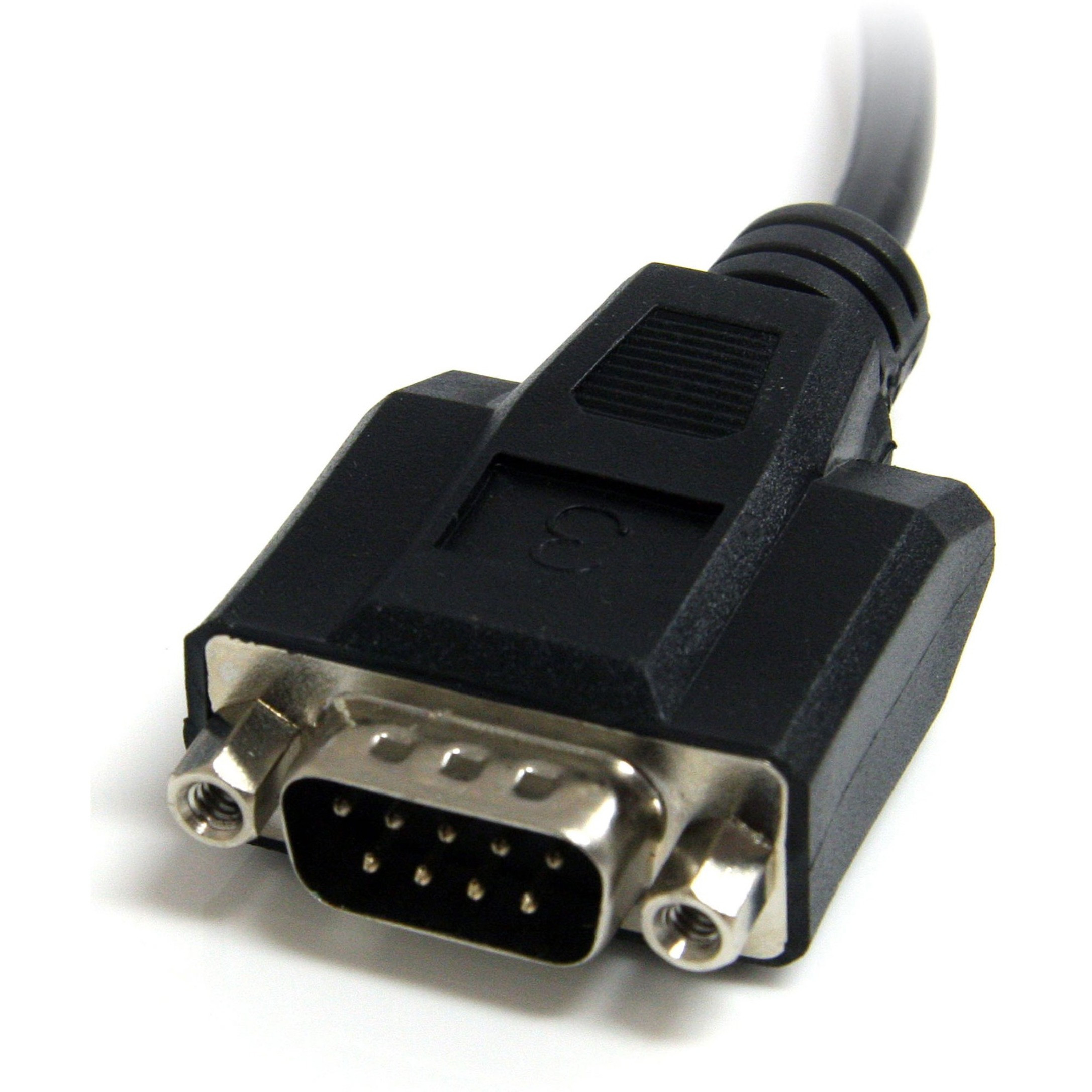

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards – a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

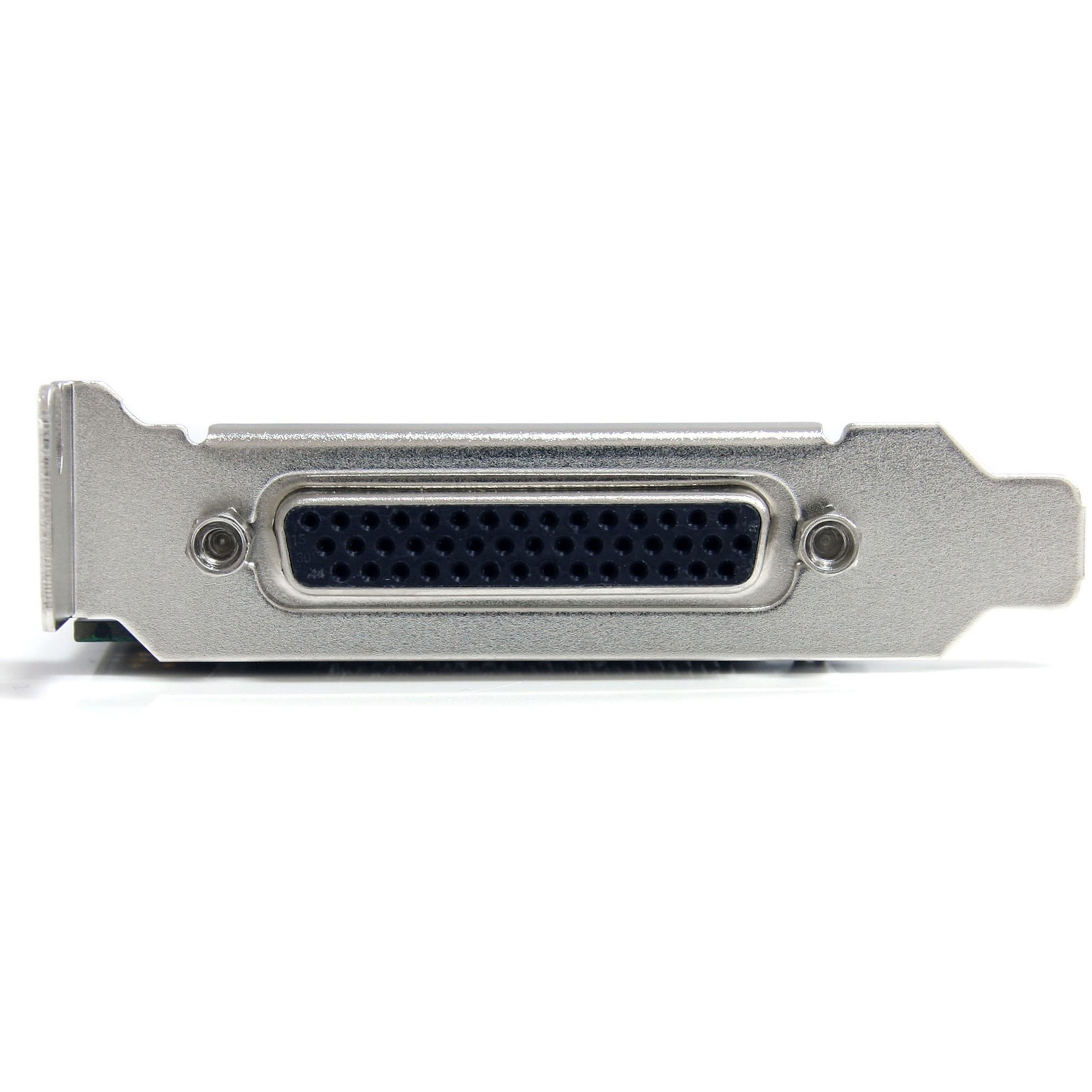

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.

This product is a replacement for our PEX4S552B card.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

Additional information

Weight 0.52 lbs
Dimensions 206.00 × 0.50 × 2.70 in
