Sale!

Startech .com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UARTAdd two RS422/485 serial ports through a standard or low profile P… PCI2S4851050

Original price was: $106.99.Current price is: $101.64.

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Supports maximum data transmission rate of 128Kbps.
16C1050 UART with 256-byte Deep FIFO.
Supports 2-wire and 4-wire RS485 modes.
Jumper pins for RS422/485 toggling.
Supports Hardware and Software flow control.
Supports PCI Power Management 1.1.
Compliant with PCI Local Bus Specification 2.3.
Supports maximum data transmission rate of 128Kbps.
16C1050 UART with 256-byte Deep FIFO.
Supports 2-wire and 4-wire RS485 modes.
Jumper pins for RS422/485 toggling.
Supports Hardware and Software flow control.
Supports PCI Power Management 1.1.
Compliant with PCI Local Bus Specification 2.3.

SKU: PCI2S4851050 Categories: , , Brand: Startech

Description

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

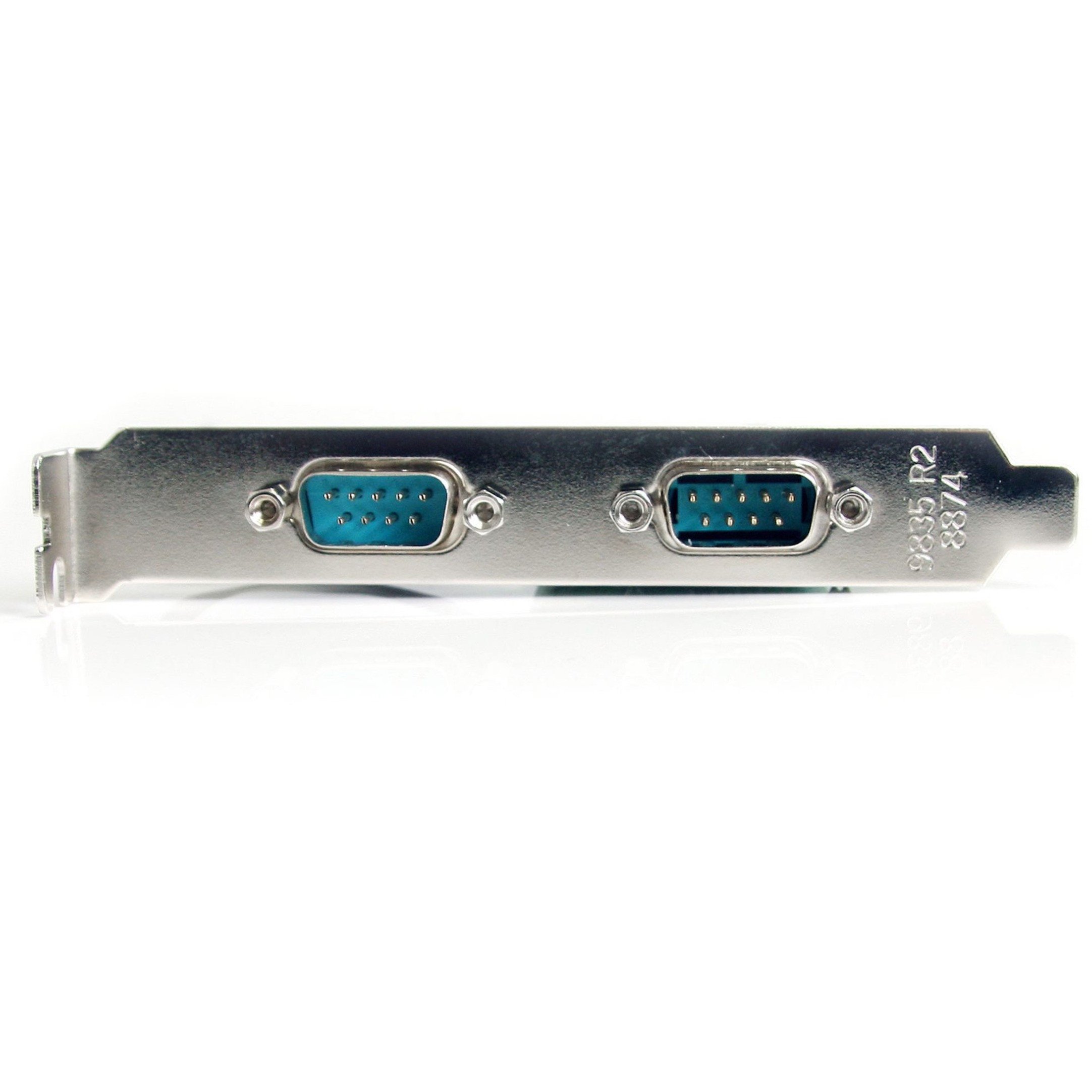

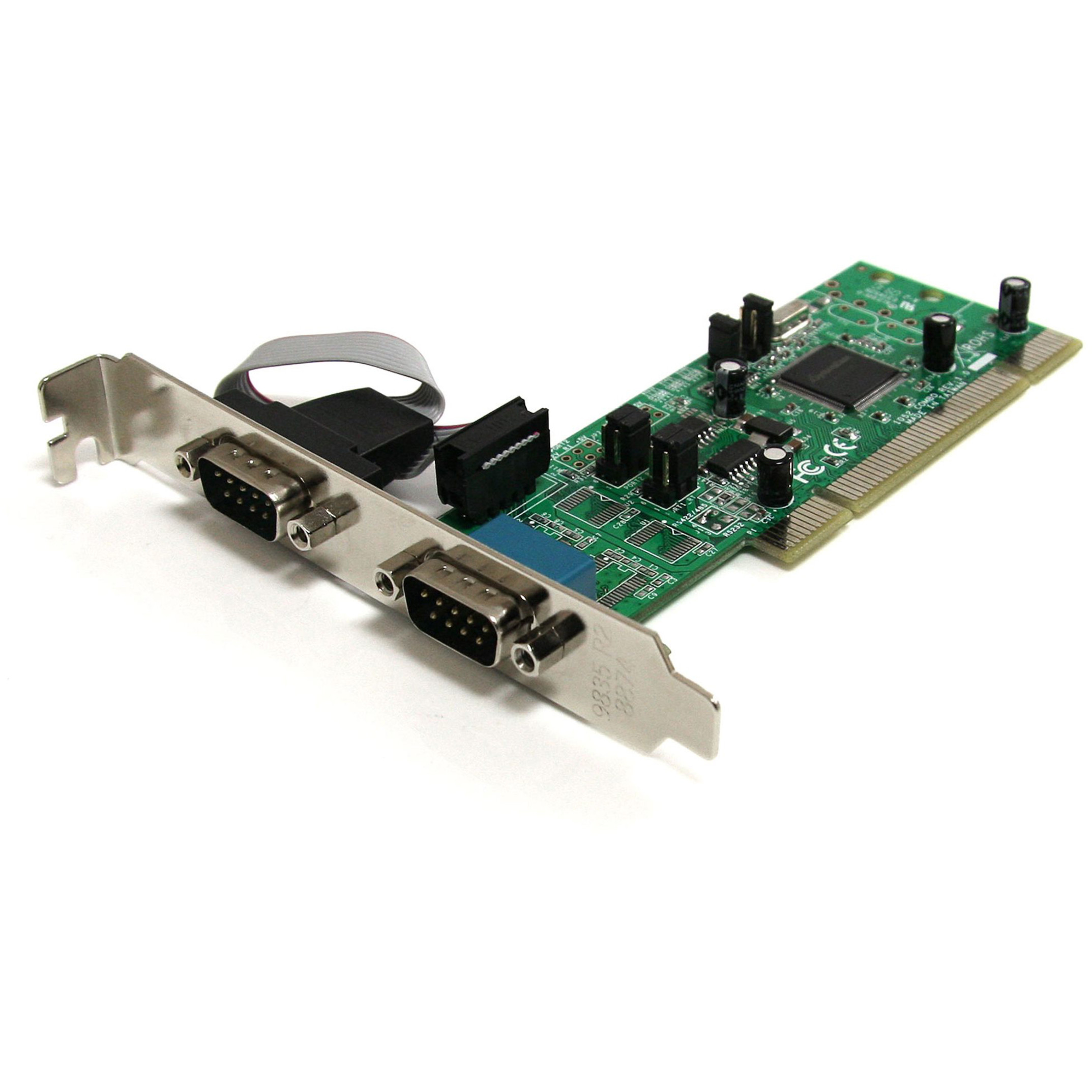

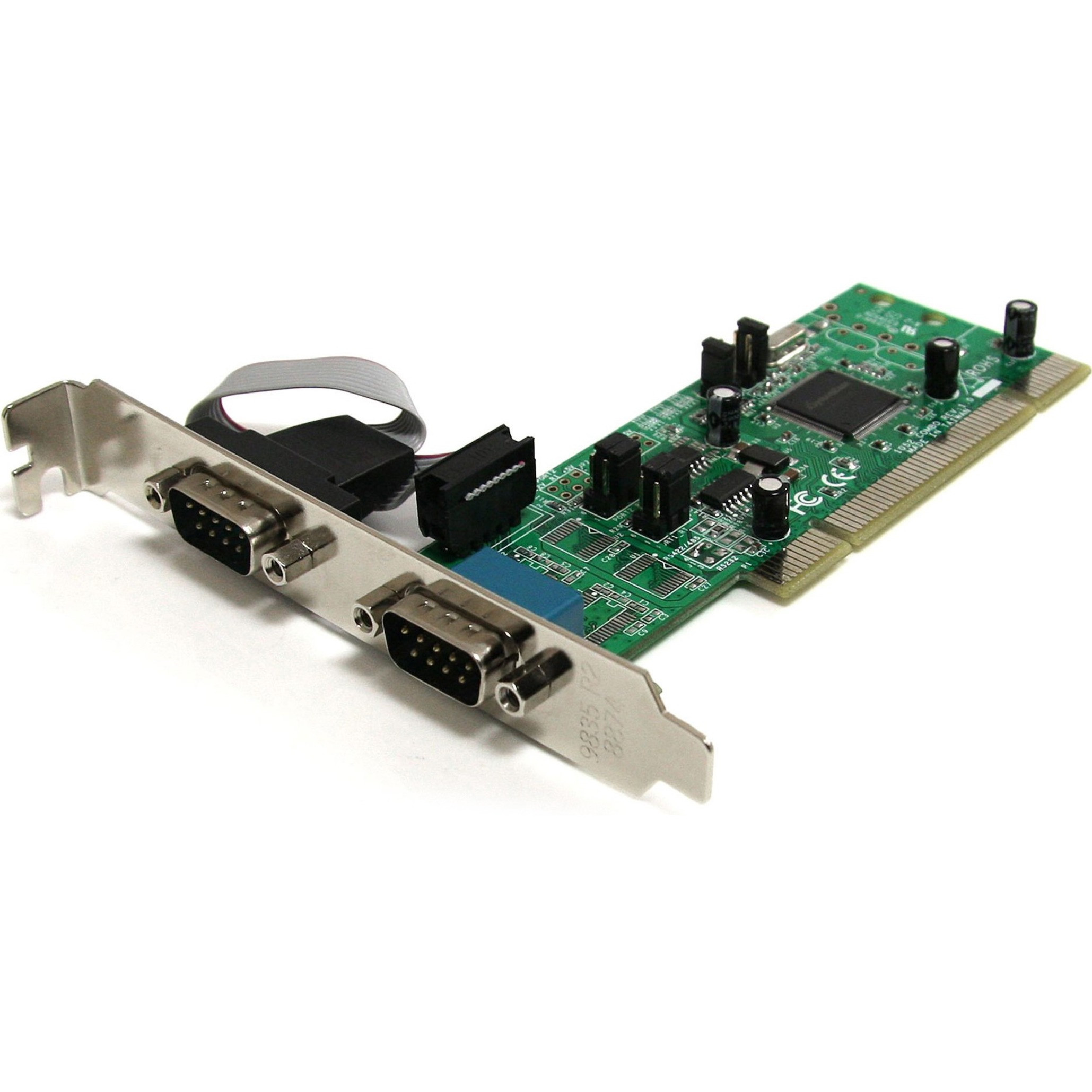

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

Additional information

Weight 0.12 lbs
Dimensions 177.00 × 0.60 × 1.80 in
