Description

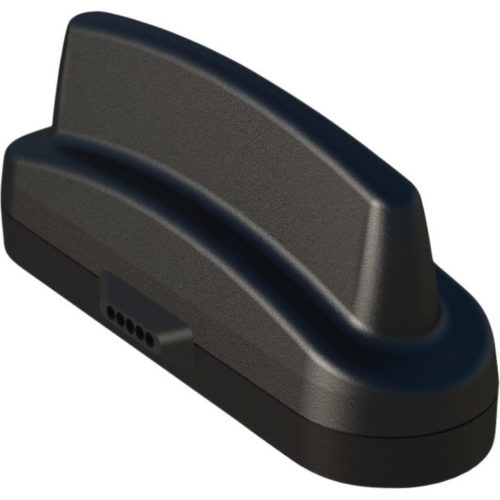

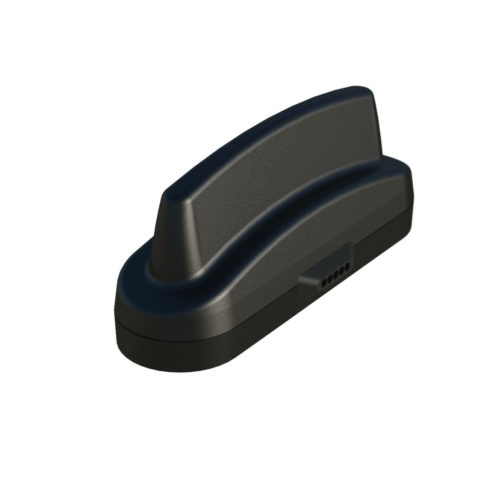

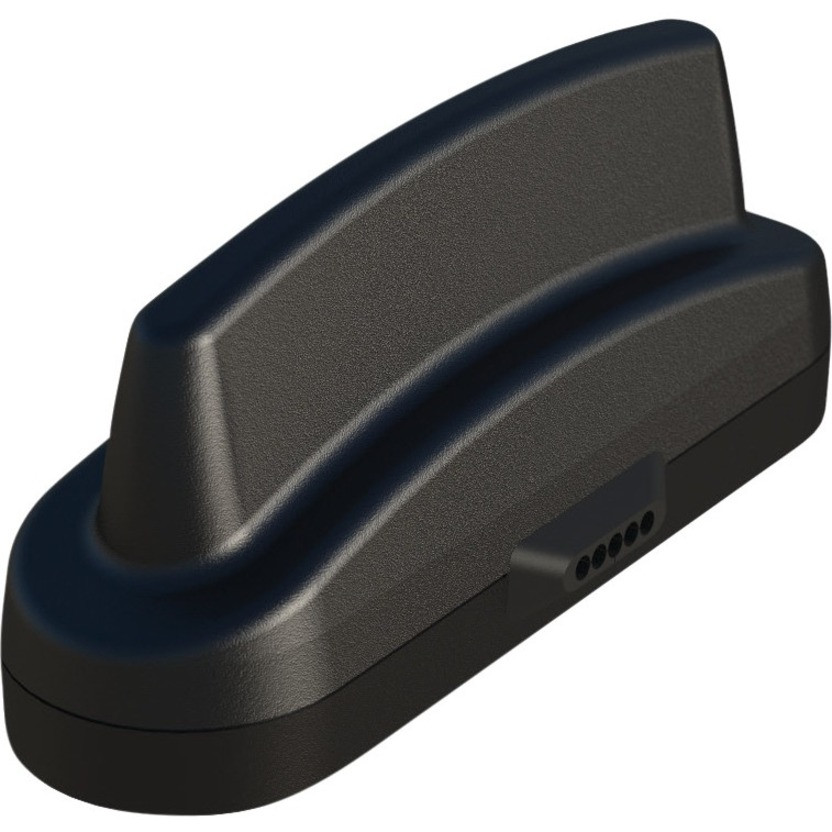

Panorama Antennas LPAMM-BC3G-26 Magnetic MiMo Cellular Antenna
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IoT and M2M applications.
- Magnetic mount
- 2 x 2 MiMo Cellular/LTE
- Cost-effective solution for M2M and IoT applications
- Optional GPS/GNSS Element
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10′) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
