Panorama Antennas Cellular / LTE Gain MiMo Antenna + GPS/GNSS698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 1562 MHz to 1612 MHz5 dBi -… WMMGG-7-27-5SP

Original price was: $213.60.Current price is: $202.92.

Panorama Antennas Cellular / LTE Gain MiMo Antenna + GPS/GNSS
Provides ease of management and installation thanks to its omni-direction feature.
Can be mounted using mast mount or a wall mount or placed on a desktop.
Provides gain of up to 5 dBi.
Designed for GPS applications that require greater accuracy.
Supports MiMo & diversity across 2G/3G/4G.
Two wideband elements with gain.
Wall / mast mount.
Itnegrated active GPS/GNSS antenna.

SKU: WMMGG-7-27-5SP Categories: , , Brand: Panorama

Description

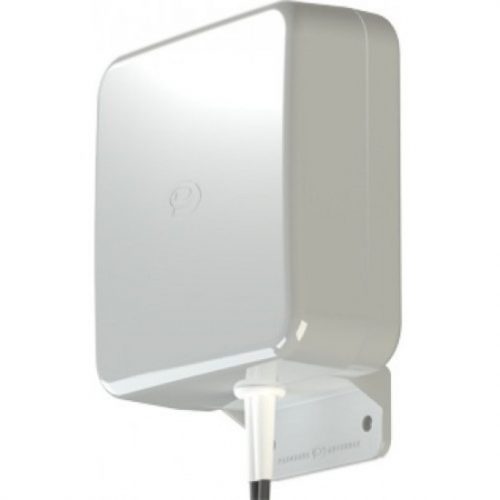

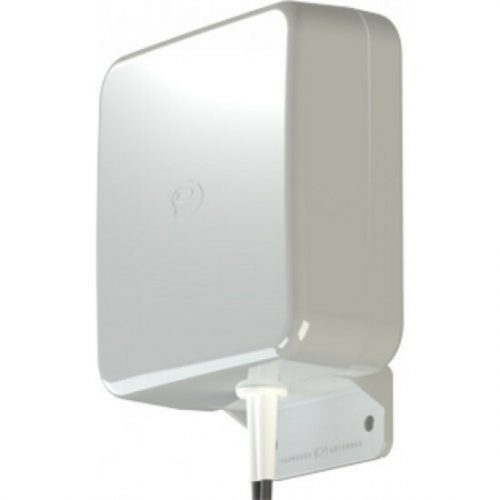

Panorama Antennas Cellular / LTE Gain MiMo Antenna + GPS/GNSS

The WMMGG antenna provides an innovative and future proof solution for 2G / 3G and 4G networks. Incorporating two seperately fed ultra wideband and elements in a single housing along with and active GPS/GNSS antenna the WMMG is rquipped to provide client side MiMo and diversity support for the networks of today and tomorrow.

With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2.2-2.7GHz the WMMG provides extra gain performance where it is needed most. The GPS/GNSS module offers an integrated 26dB gain LNA.

The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided.

The cellular/LTE feeds are fitted with 5 metres (16′) of fitted low loss double shielded twin cable and the GPS/GNSS is supplied with 6m (20′) of RG174. This configuration minimises exposed connector joints and simplifies cable management for easy installation.

Additional information

Weight 3.402 lbs
Dimensions 360.00 × 6.10 × 6.10 in
