Eaton Tripp Lite Series PDU Power Cord, C13 to P-Lock C14North America and Europe Rated, 10A, 250V, 18 AWG, 10 ft. (3.1 m), BlackFor PDU,… P004-E10


Please request a quote

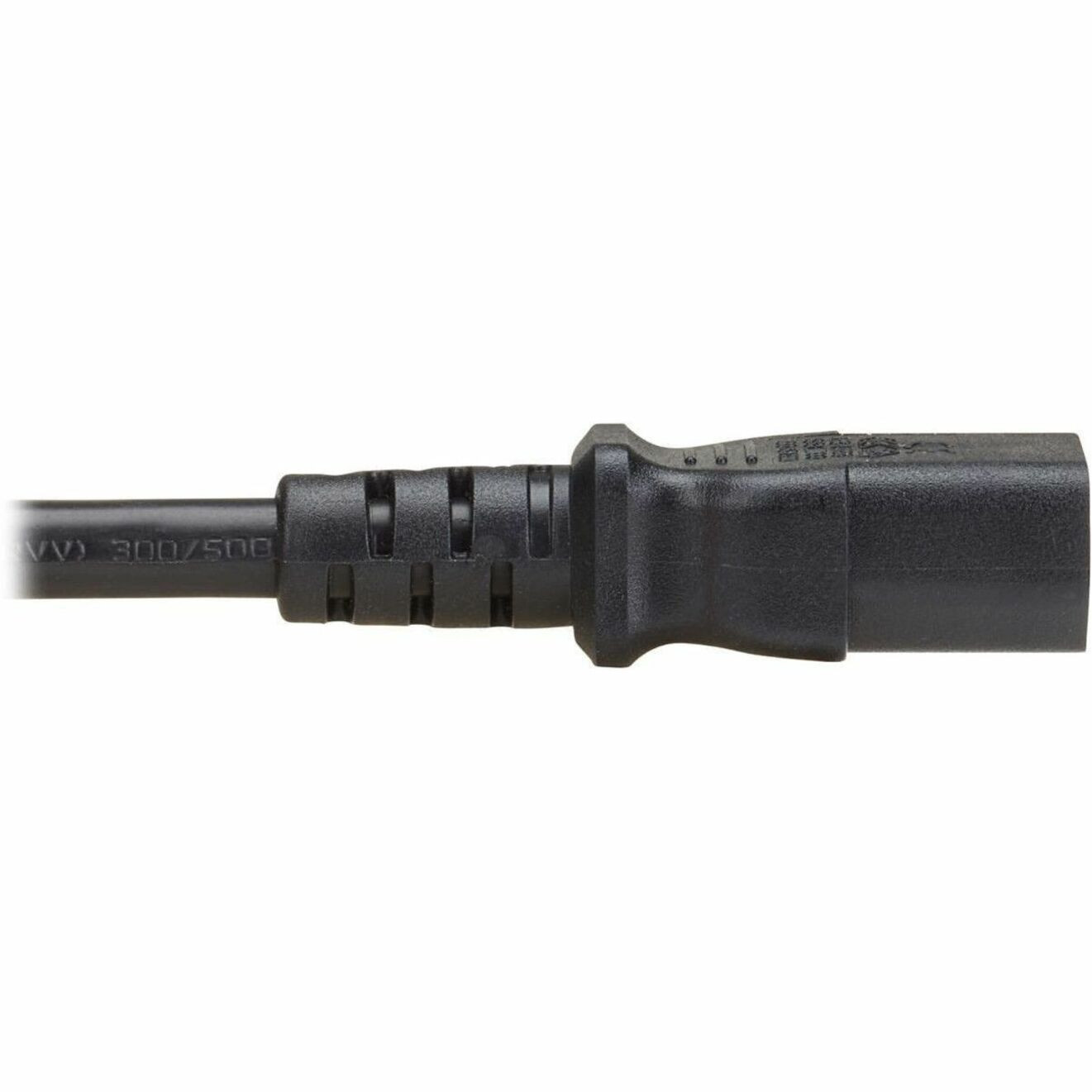

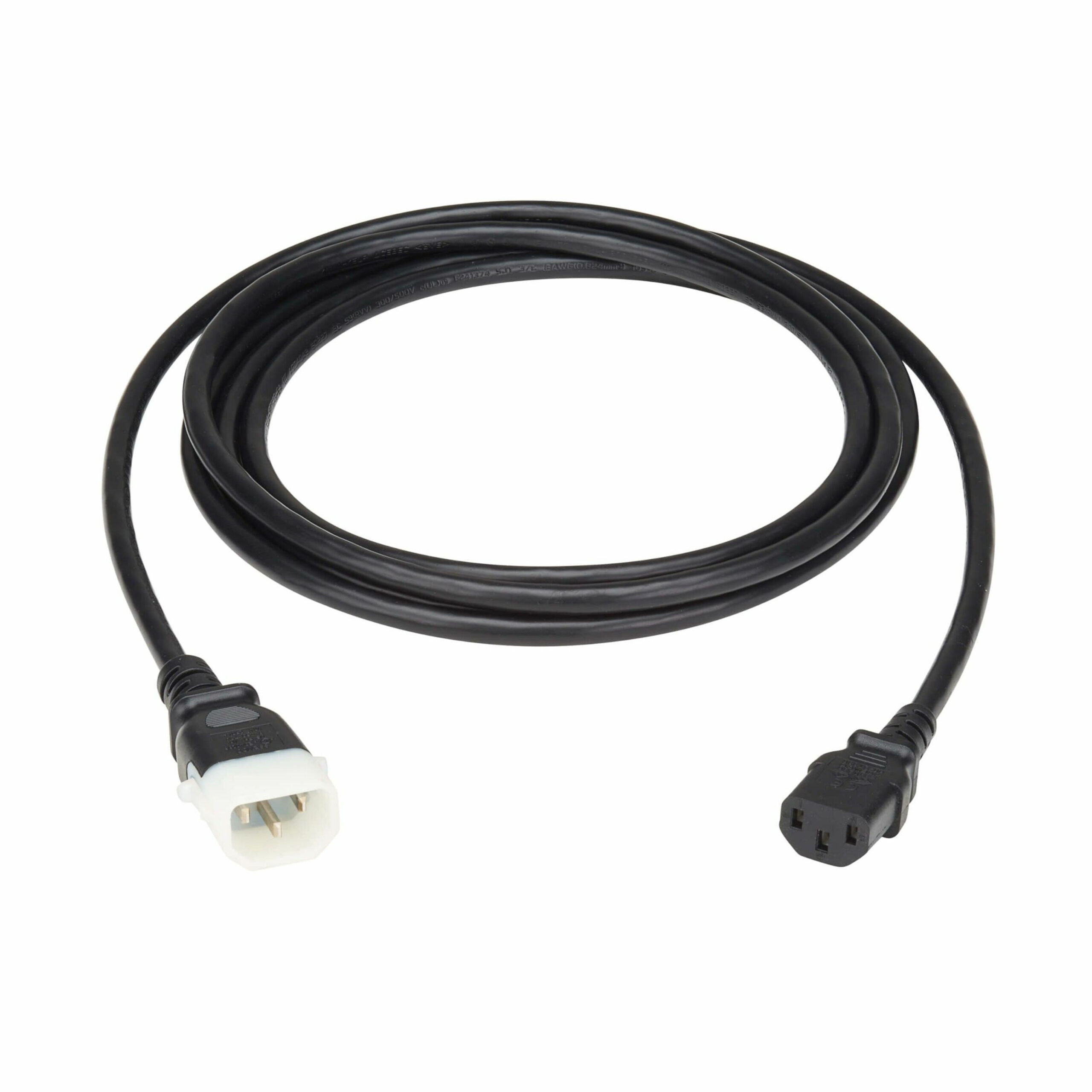

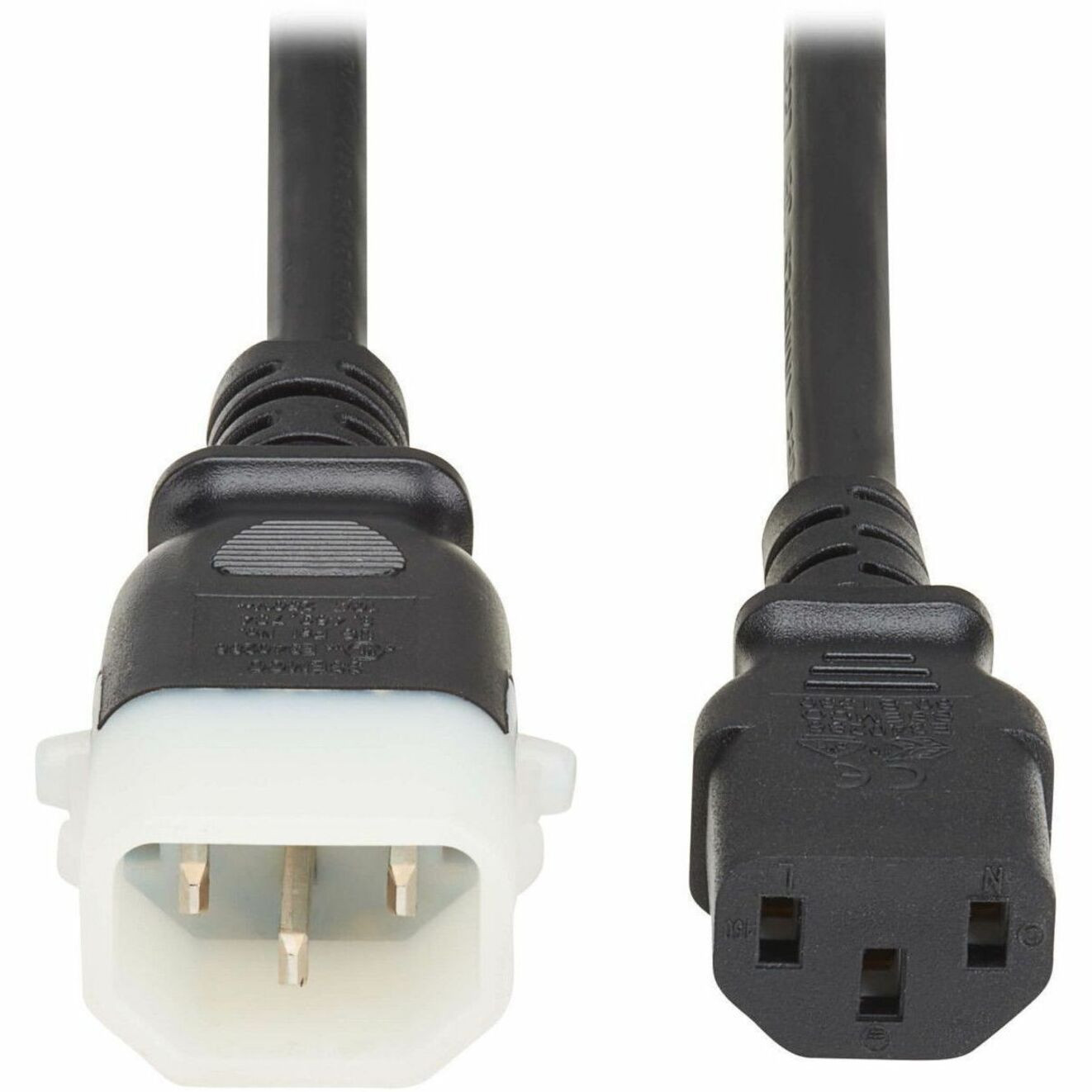

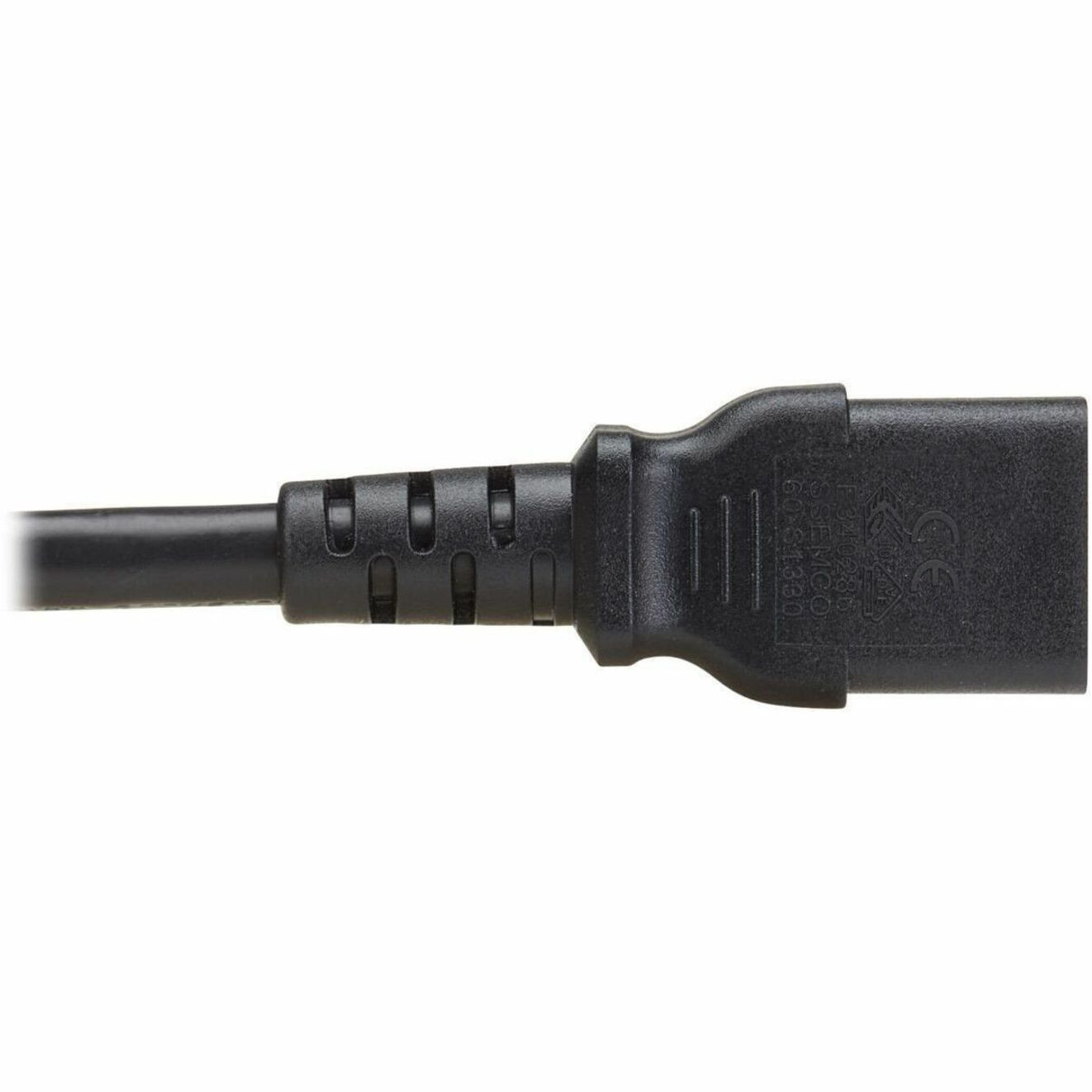

Eaton Tripp Lite Series PDU Power Cord, C13 to P-Lock C14 – North America and Europe Rated, 10A, 250V, 18 AWG, 10 ft. (3.1 m), Black

SKU: P004-E10 Categories: , Brand: Eaton Brand:

Description

Eaton Tripp Lite Series PDU Power Cord, C13 to P-Lock C14 – North America and Europe Rated, 10A, 250V, 18 AWG, 10 ft. (3.1 m), Black

Locking C13-to-C14 Power Cable Connects Computers and Servers to a PDU

The P004-E10 power extension cord can be used to power a computer, server, switch or other device commonly found in a small data center, office workstation or other lower-amp application. The 10-foot (3.1-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU in a crowded rack enclosure. It complies with UL and VDE standards for international application use.

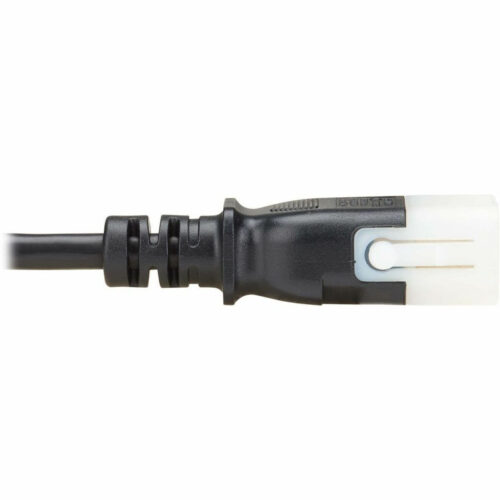

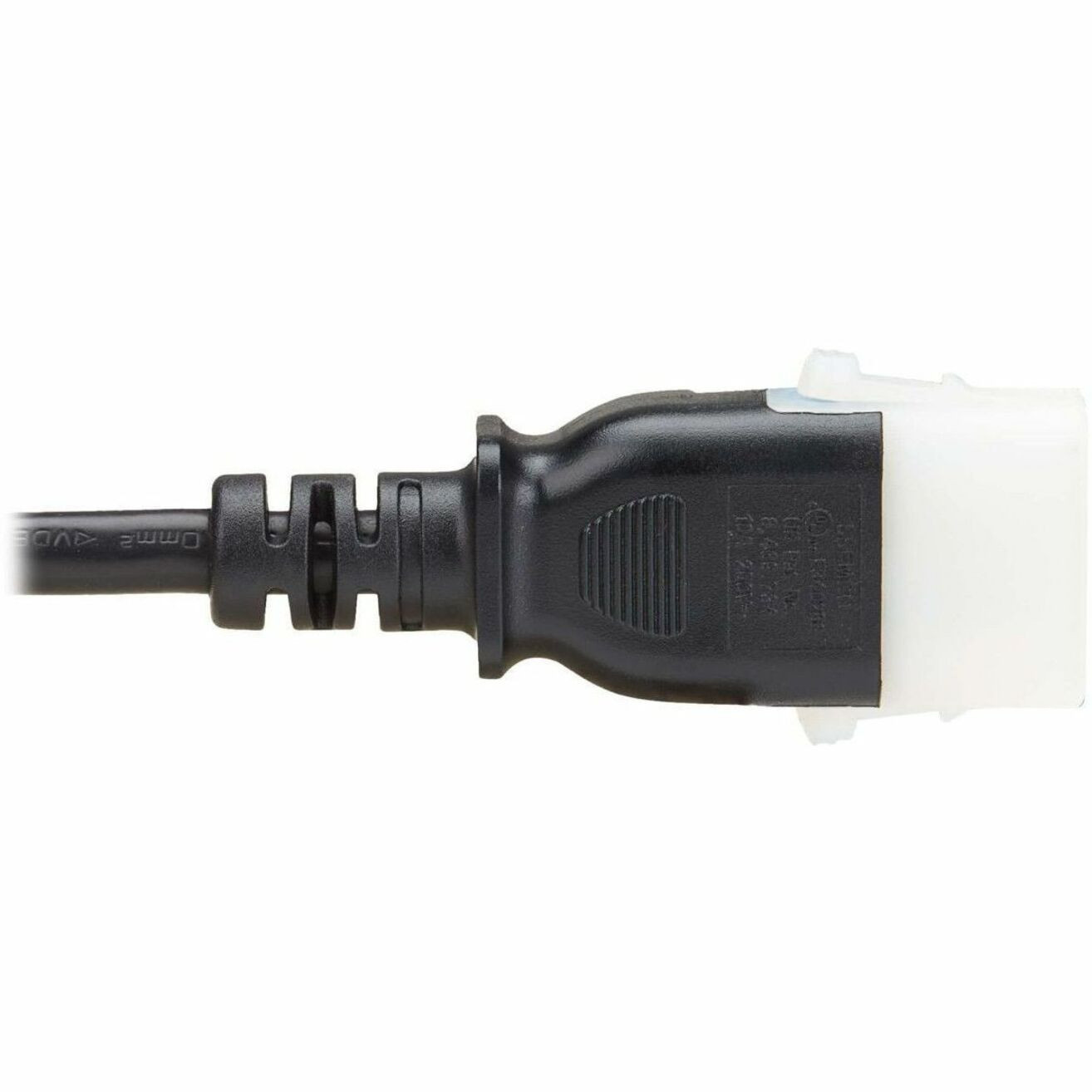

Forms a Special Locking Connection with a P-Lock Outlet

The P-Lock C14 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C13 and C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P004-E10 lets you replace a non-locking C14/C13 cable or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets.

Additional information

Weight 0.77 lbs
Dimensions 0.50 × 7.99 × 10.00 in
Product Type Standard Power Cord
Compatibility <p>Eaton G4 and Newer PDUs</p>
Device Supported PDU, Computer, Monitor, HDTV, Printer, Server, UPS, Network Device, Switch, Workstation, Rack
Localization International
Manufacturer Part Number P004-E10
Manufacturer Website Address http://www.eaton.com
Limited Warranty Lifetime
Features P-Lock
Manufacturer Eaton Corporation
Product Model P004-E10
Product Name P004-E10 Standard Power Cord
Voltage Rating 120 V AC, 230 V AC
Current Rating 10 A
Number of Conductors 3
Brand Name Tripp Lite series
Gauge 18
Cord Length 10 ft
Minimum Storage Temperature 14&deg;F (-10&deg;C)
Maximum Storage Temperature 140&deg;F (60&deg;C)
Jacket Material Polyvinyl Chloride (PVC), Service Junior Thermoplastic (SJT)
Product Color Black
Color Family Black
First End Connector Type IEC 60320 C13
First End Connector Detail 1 x 3-pin IEC 60320 C13 Female
Second End Connector Type IEC 60320 C14
Second End Connector Detail 1 x 3-pin IEC 60320 C14 Male
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 3, Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
Certifications & Standards <li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed, <li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>UL Listed, <li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe), <li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>UKCA
Minimum Operating Temperature 23&deg;F (-5&deg;C)
Maximum Operating Temperature 158&deg;F (70&deg;C)
GTIN 0037332292964
UPC 037332292964
EAN 0037332292964
UNSPSC 26121636
