Description

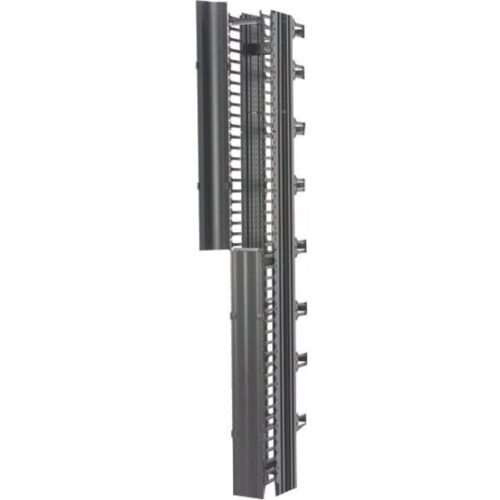

Eaton RCM+ Vertical Cable Manager, Dual Density, 6″W X 84″H, Flat Black
- SB864 Series cable managers utilize our SB860 and SB862 Series cable managers in back-to-back combination for use in applications with widely differing cable management requirements.
- Front and rear vertical sections can be spaced apart when mounting on racks deeper than 3″ (76mm). This allows cables to be routed out through side openings created between the vertical sections.
- One-piece full length doors, with quarter-turn locking hinges, allow for quick opening from either side or complete removal.
- Snap-on gates on both sides allows for quick opening from either side or complete removal.
- Open back design allows unrestricted routing of cables between front and rear sections.
- Installation is easy and can be done in minutes using standard hand tools.
- 1/4″ accessory mounting holes run the full height on both sides of cable manager to accommodate the attachment of cable management accessories.
- Optional back cover with cable pass through openings, vertical slots for cable straps, and keyhole slots for attaching cable spools.
- UL Listed as a Communication Circuit Accessory. File No. E171936.
- Material: Aluminum with UL 94V-0 black plastic components
- Finish: Flat Black Powder Coat (FB) or Silver Powder Coat (SL)
- Vertical cable manager includes:(2) vertical cabling sections, (1) door,(50) push-in fasteners, (12) cable strap mounts, (4) cable retainer bars, required number of gates and mounting hardware.
