CyberPower PDU20SWHVIEC10ATNET 200 – 240 VAC 20A Switched ATS PDU
PDU improves efficiency, uptime and growth of data centers.
With switched PDU, remotely monitor, connect or disconnect data center loads.

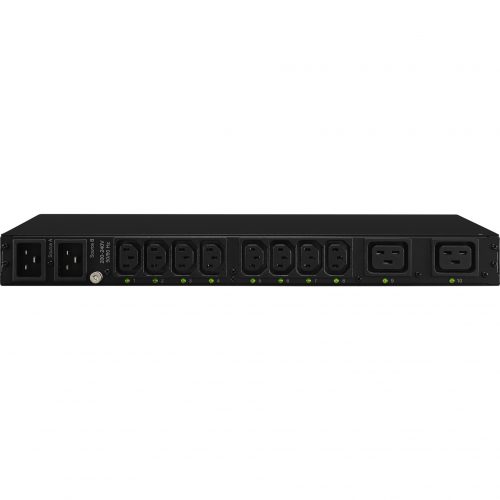

200V – 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual IEC-320 C20 20A high-voltage input connections.
Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option.
Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load.
SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU.

SKU: PDU20SWHVIEC10ATNET Categories: , Brand: Cyber Power

Discontinued - Call for replacement

Description

CyberPower PDU20SWHVIEC10ATNET 200 – 240 VAC 20A Switched ATS PDU
The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

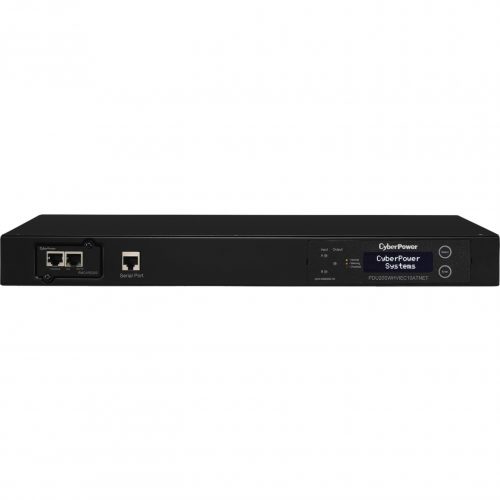

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Additional information

Weight 11.732 lbs
Dimensions 9.30 × 17.05 × 1.75 in
