AXIOM NETWORK ADAPTERS Transceiver/Media Converter1 x (RJ-45)1 x ST PortsDuplexST PortSingle-modeGigabit Ethernet1000Base-ZX, 10/… MC03-S5T80-AX

Original price was: $183.00.Current price is: $173.85.

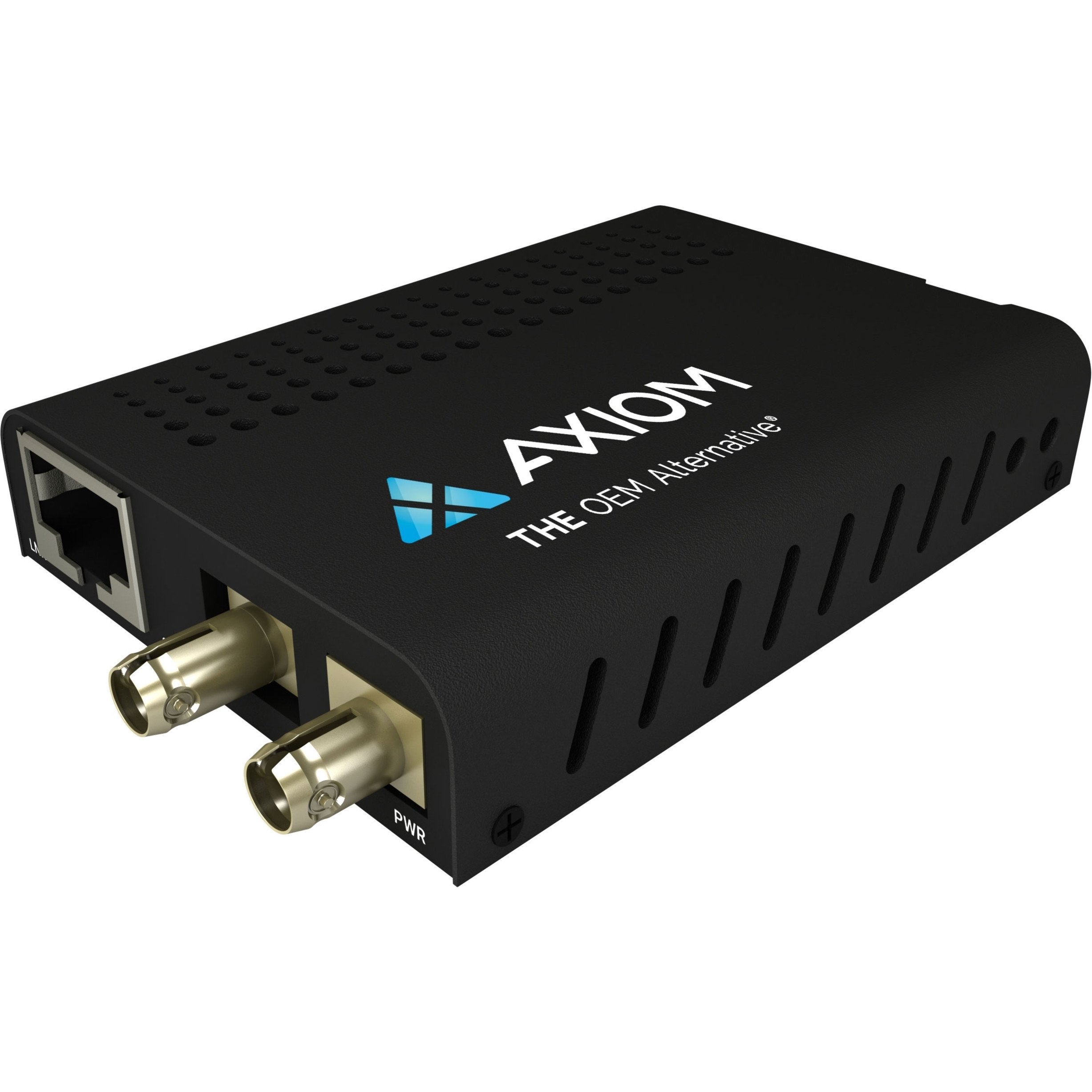

Axiom Transceiver/Media Converter
Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter.
With 1000Base-ZX technology get up to 1000Mbps data transfer rate over optical fiber cable.
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices.

SKU: MC03-S5T80-AX Categories: , Brand: Axiom Network Adapters

Description

Axiom Transceiver/Media Converter

Features

The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

  • Unit and Port LEDs allow for quick status information
  • Auto-Negotiation
  • Full-Duplex or Half-Duplex Operation Modes
  • Auto-MDI/MDIX
  • Automatic Link Restoration
  • Connect to legacy network equipment
  • Eliminate Collision Domains
  • 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
  • Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
  • Available with Open SFP Port or optional built in LC/SC/ST Connections
  • DIP switch to set different configurations
  • Compact package size
  • Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function

Additional information

Weight 0.28 lbs
Dimensions 0.00 × 0.00 × 0.00 in
