Description

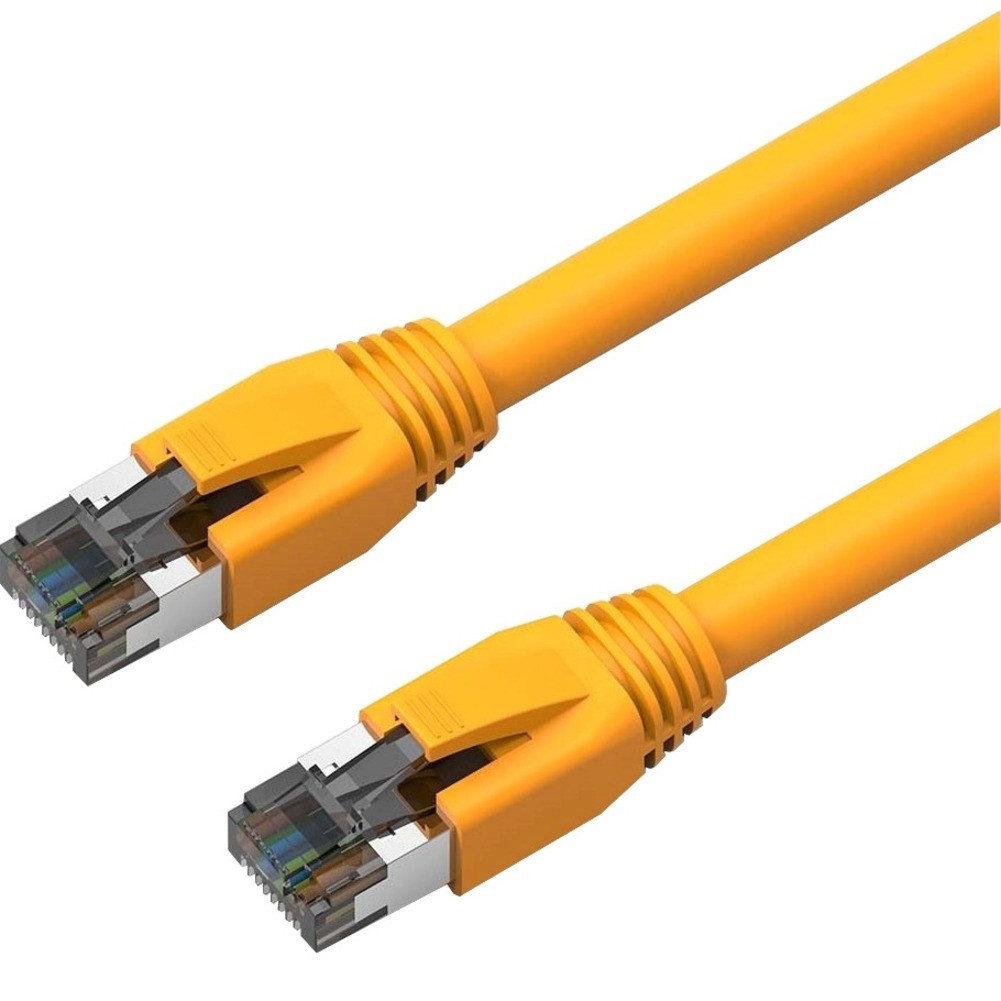

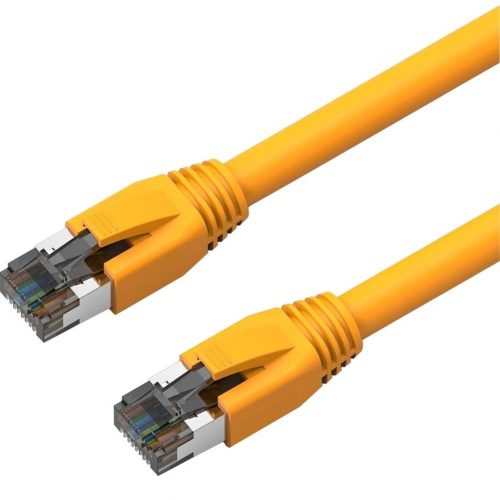

Axiom 3FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)
Axiom’s CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors
Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
Shielding: Each pair Foil shielded / 4 Pair Braid Shield
Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
Provides EMI/RFI shielding in Ethernet networks
Wiring: T568B standard
Jacket: PVC
Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
Snagless Rubber Boots with Strain Relief
Max Bandwidth: Up to 2,000 MHz (2GHz)
Max data rate: Up to 40Gps
Min Avg. jacket Thickness: 0.60 +/- 0.1mm
Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
Available in all lengths from 6-Inch to 50ft
Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
