Description
Description: INTL RACK SIDE AIR DIST UNIT 2U 230V 208
APC Rack Side Air Distribution 208/230V 50/60HZ – Fan unit – black – 2U – for P/N: AP8702S-WWX340, AR3103, AR3103SP, AR3106SP, AR9300SP, SRT1000RMXLI, SRT1000RMXLI-NC

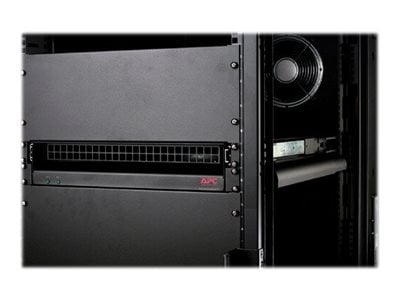

Housing equipment with side to side airflow creates many challenges for IT and facility managers, particularly in regards to cooling. Because most enclosures are designed for a front to back airflow pattern, it is difficult to maintain ideal operating temperatures on side to side airflow equipment. The Rack Side Air Distribution Unit is a 2U rack mountable air distribution product for networking equipment or servers with side to side airflow. It pulls in conditioned air from the front of the rack and distributes it to the side air intake of the networking equipment.
Whats in the Box
- Installation guide
- User manual
Key Selling Points
Dual Fans increase equalized airflow from top to bottom of the equipment
A-B Power Input Feeds: two power cords are shipped with the unit, by connecting the cords to separate power sources, you can provide redundant power to the unit, maximizing uptime
Independent On/Off Switch allows to turn on one fan for equipment requiring lower CFM volumes or turn on both to reach maximum airflow volumes; with one fan off, the Side Air Distribution unit is prevented from taking excess cool air from the cold aisle that could be used for other equipment
Airflow Turning Vane directs conditioned room air directly to the equipment inlet, allows for variability in placement of the unit and equipment, it can be placed under a piece of a equipment and blow air up or above a piece of equipment and blow air down
Cool Air inlet pulls in conditioned room air that is required by the side-to-side equipment to maintain efficiency
Redirected Conditioned Air: positions air directly at the side-to-side equipment inlet so that it can be drawn in evenly to cool and maintain equipment life
